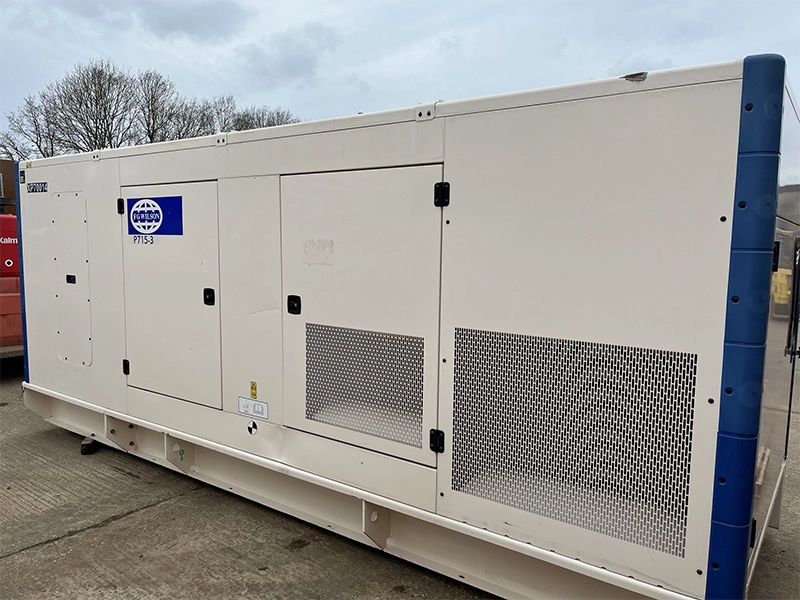

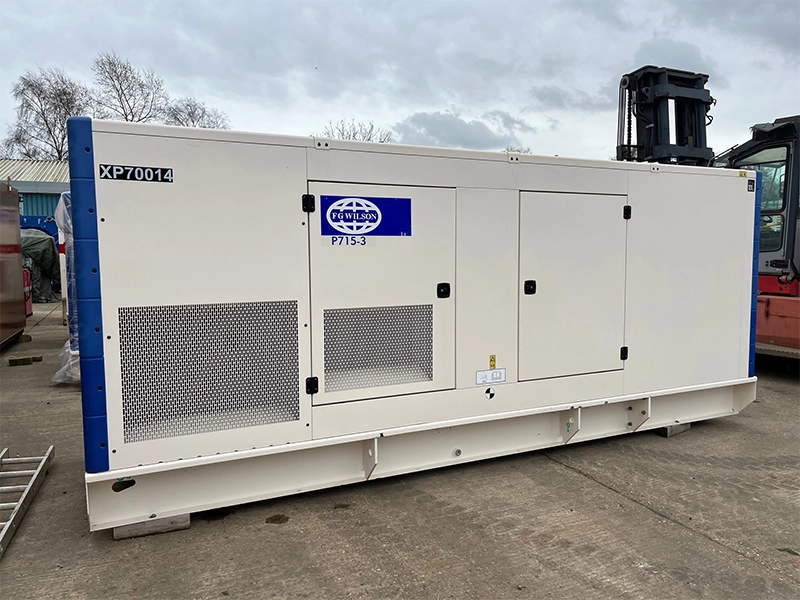

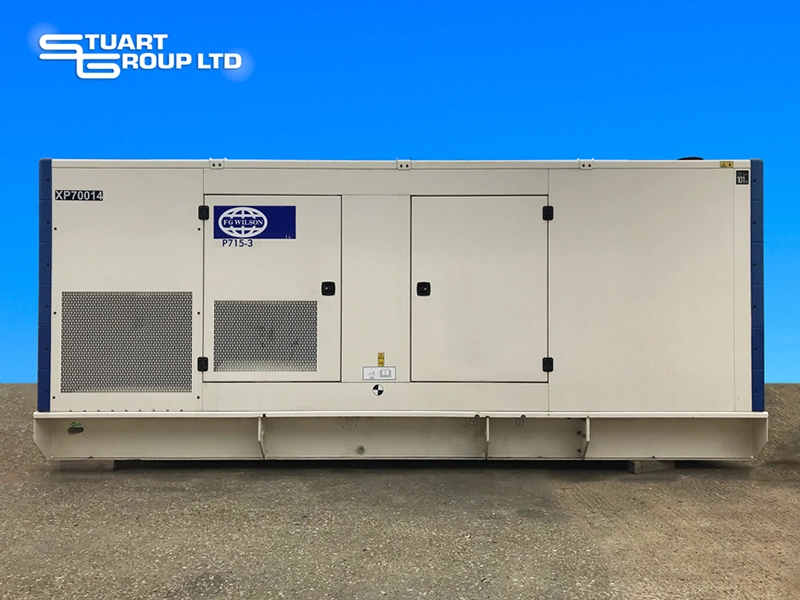

Used FG Wilson Perkins 715kVA Diesel Generator

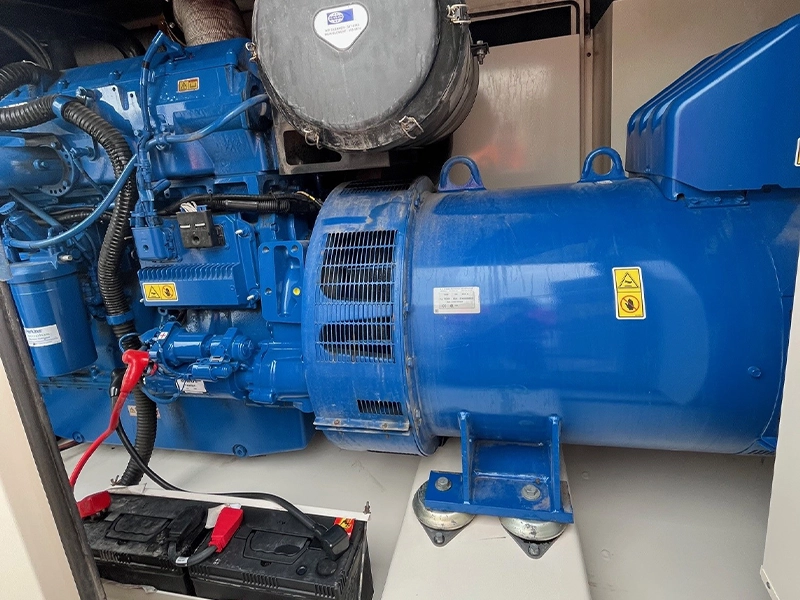

Used FG Wilson Perkins 715 kVA / 572 kW diesel generator, powered by a Perkins 2806 engine, running a Leroy Somer 400/230 Volts, 1032 Amps, 50Hz alternator. It is controlled by an PowerWizard 1.1+ LED controller. All used units are sold in good working order, tested, and serviced at our workshop before dispatch, complete with industry-leading warranty available.

For more information, please click on Data Sheet or contact our team.

Technical Data

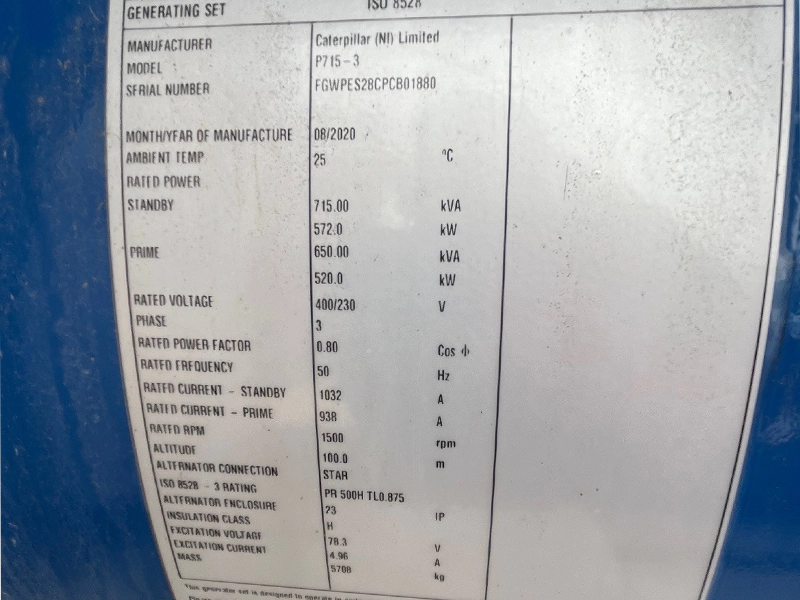

Manufacturer	FG Wilson - P715-3
Year of Manufacture	2020
Standby	715.0 kVA / 572.0 kW
Prime	650.0 kVA / 520.0 kW
Phase	Three-Phase

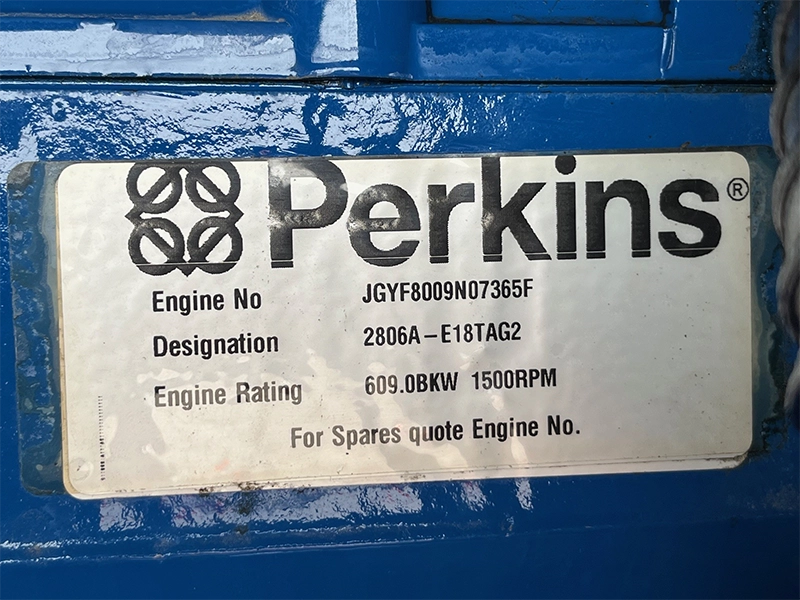

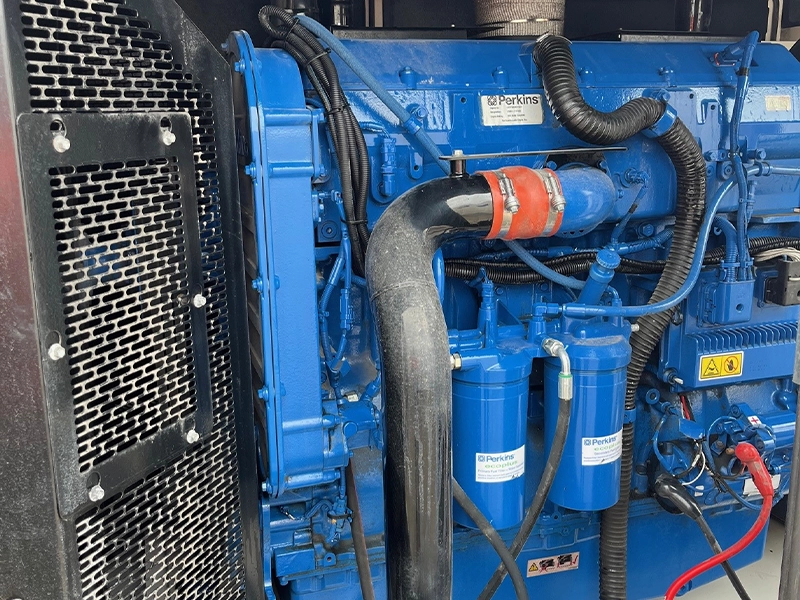

Engine	Perkins - 2806
Engine Hours	6,962 hrs

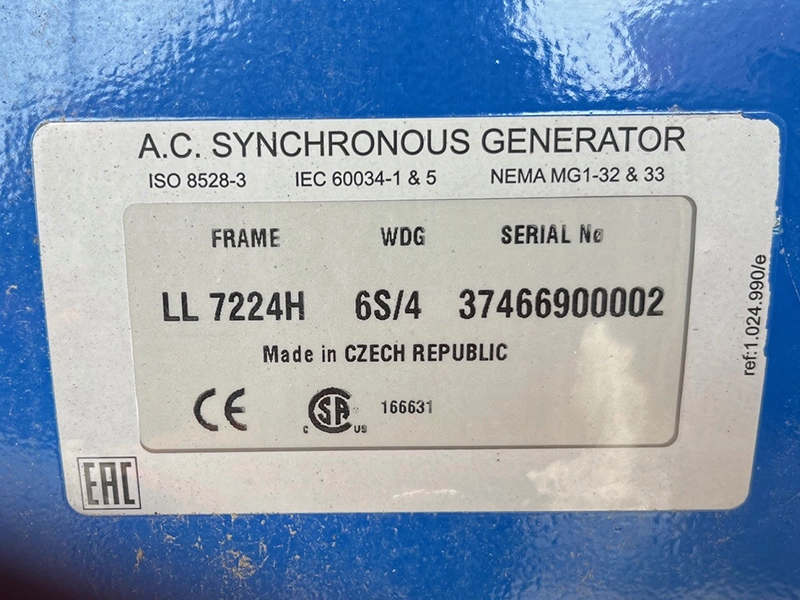

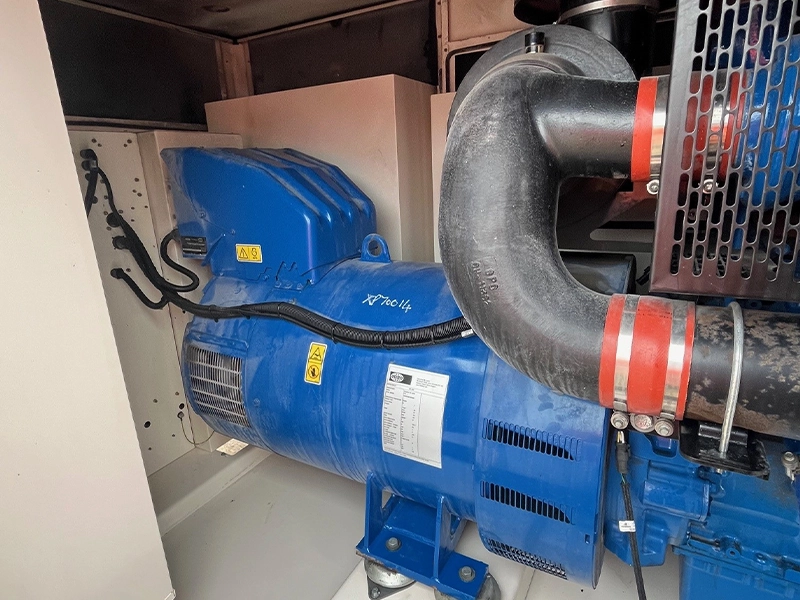

Alternator	Leroy Somer - LL7224H
Voltage	400/230 V
Current	1032.0 A
Frequency	50 Hz

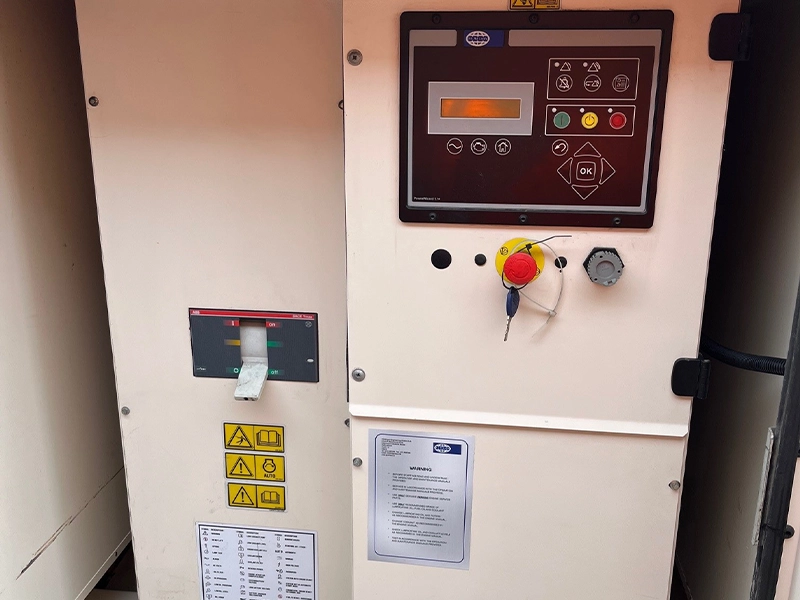

Control Panel	FG Wilson - PowerWizard 1.1+

Dimensions

Length	5,340 mm
Width	1,880 mm
Height	2,400 mm
Weight	6000.00 kg

Please Note: The dimensions and weight are approximate and may be estimated.
