Used Cummins 706kVA Diesel Generator

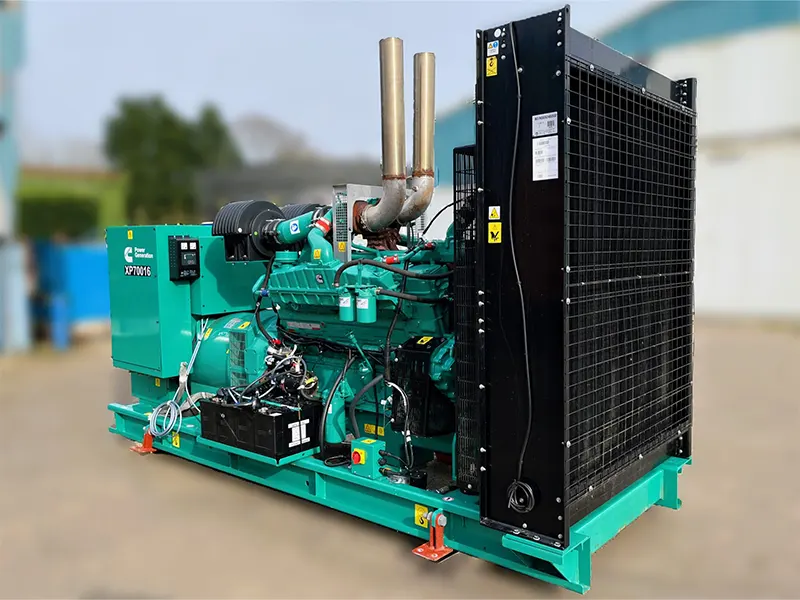

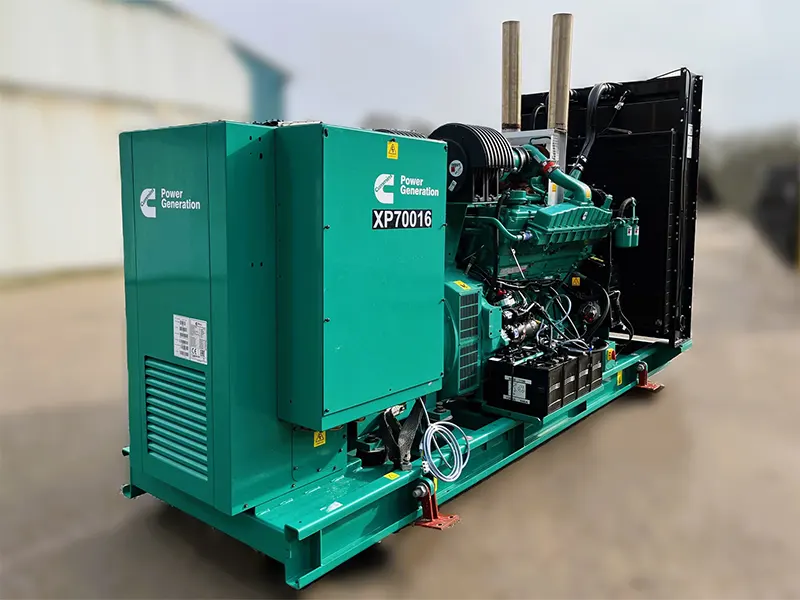

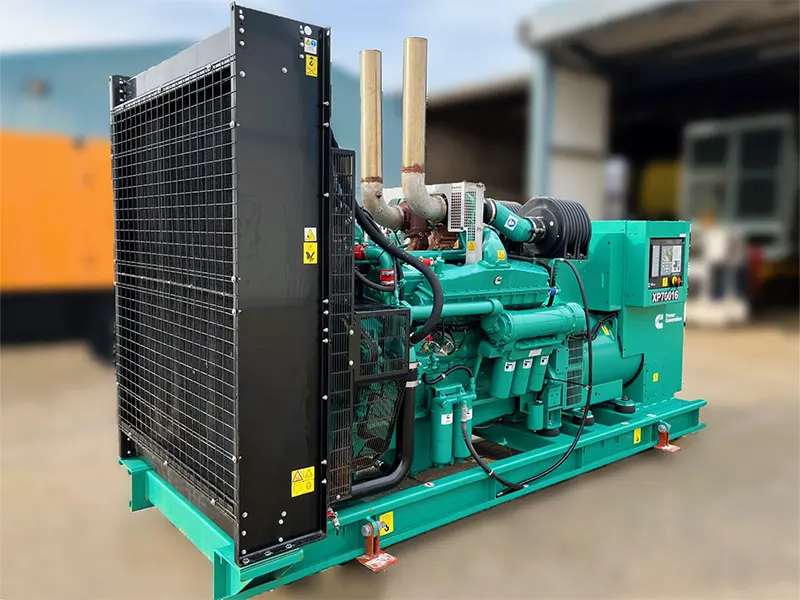

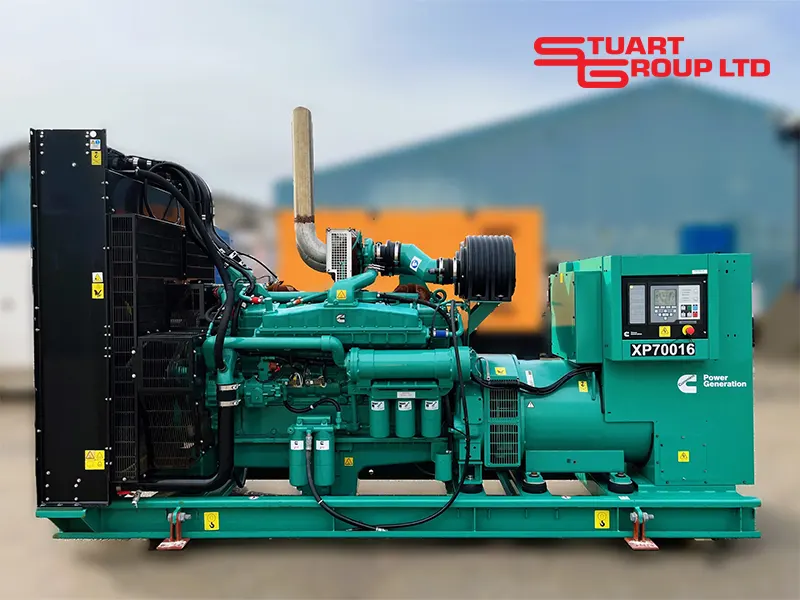

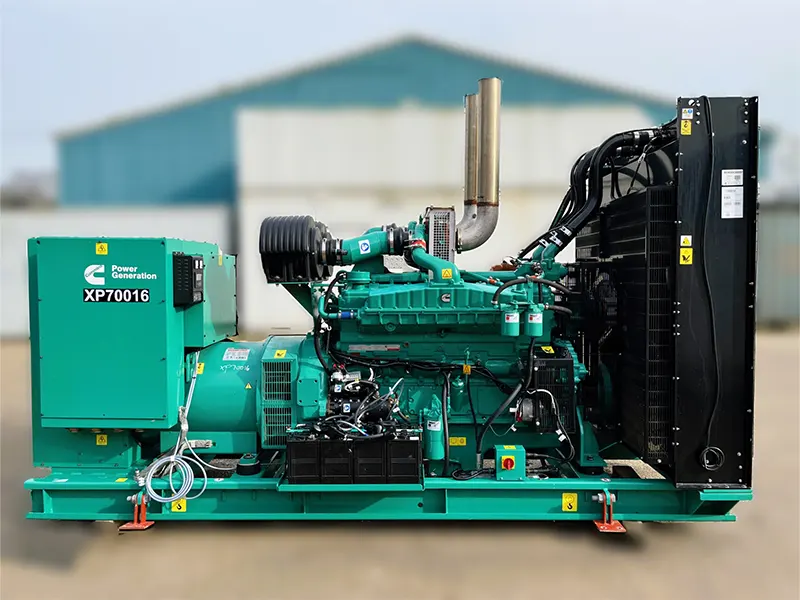

Used Cummins C700D5 706 kVA / 564.8 kW diesel generator, powered by Cummins VTA 28-G5 engine, running a Stamford 400/230 Volts, 1019 Amps, 50Hz alternator. It is controlled by an Cummins PowerCommand 3.3 controller. All used units are sold in good working order, tested, and serviced at our workshop before dispatch, complete with industry-leading warranty available.

For more information, please click on Data Sheet or contact our team.

Technical Data

Manufacturer	Cummins - C700D5
Year of Manufacture	2022
Standby	706.0 kVA / 564.8 kW
Prime	640.0 kVA / 512.0 kW
Phase	Three-Phase

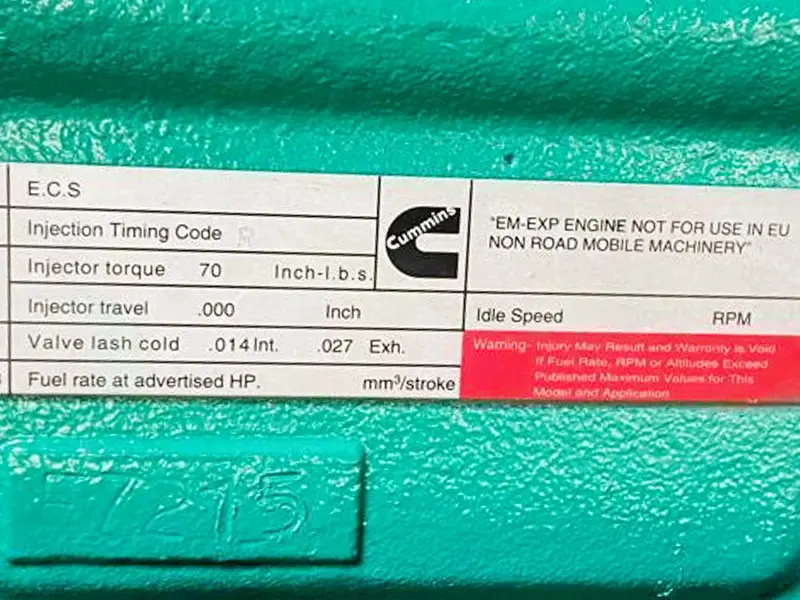

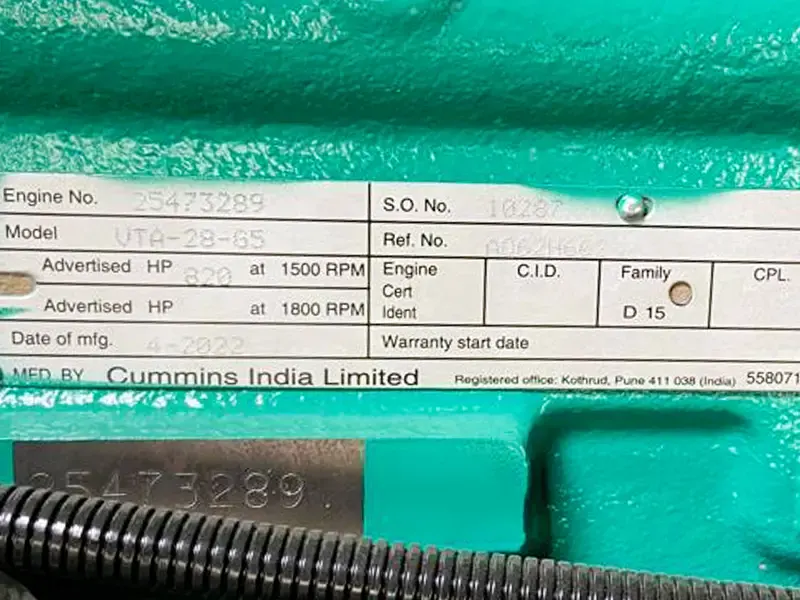

Engine	Cummins - VTA 28-G5
Engine Hours	7 hrs

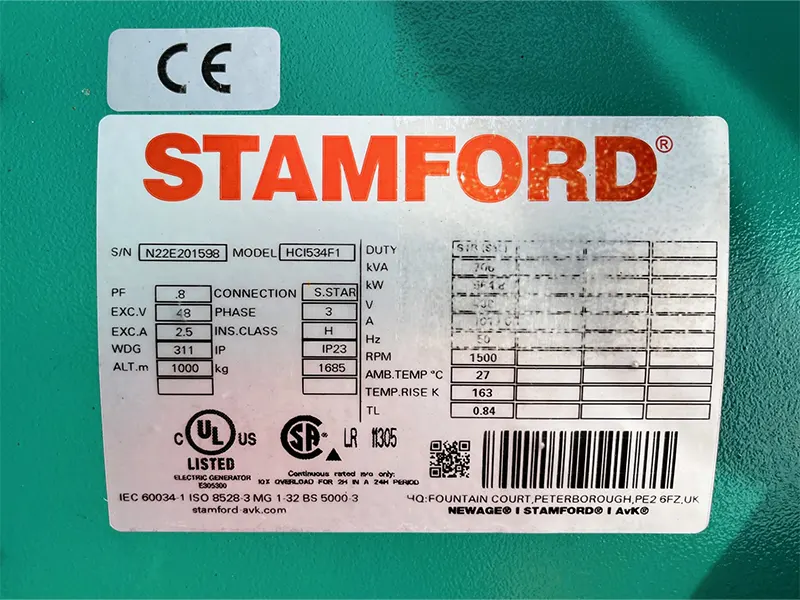

Alternator	Stamford - HC1534F1
Voltage	400/230 V
Current	1019.0 A
Frequency	50 Hz

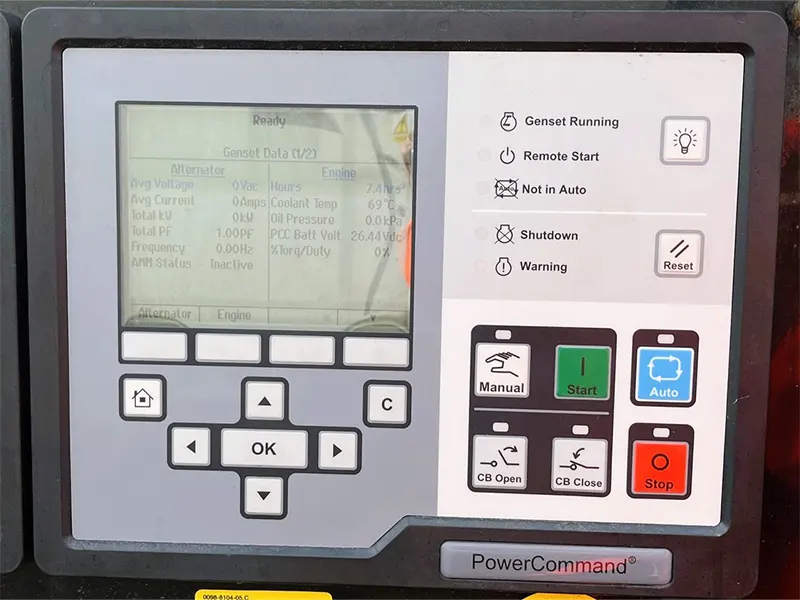

Control Panel	Cummins - PowerCommand 3.3

Dimensions

Length	3,934 mm
Width	1,468 mm
Height	2,179 mm
Weight	5839.00 kg

Please Note: The dimensions and weight are approximate and may be estimated.
