Used FG Wilson Perkins 550kVA Diesel Generator

Used FG Wilson Perkins 550 kVA / 440 kW diesel generator, powered by a Perkins 3008-TAG 4 engine, running a Leroy Somer 415/240 Volts, 765 Amps, 50Hz alternator. It is controlled by an FG Wilson 4101 controller. All used units are sold in good working order, tested, and serviced at our workshop before dispatch.

For more information, please click on Data Sheet or contact our team.

Technical Data

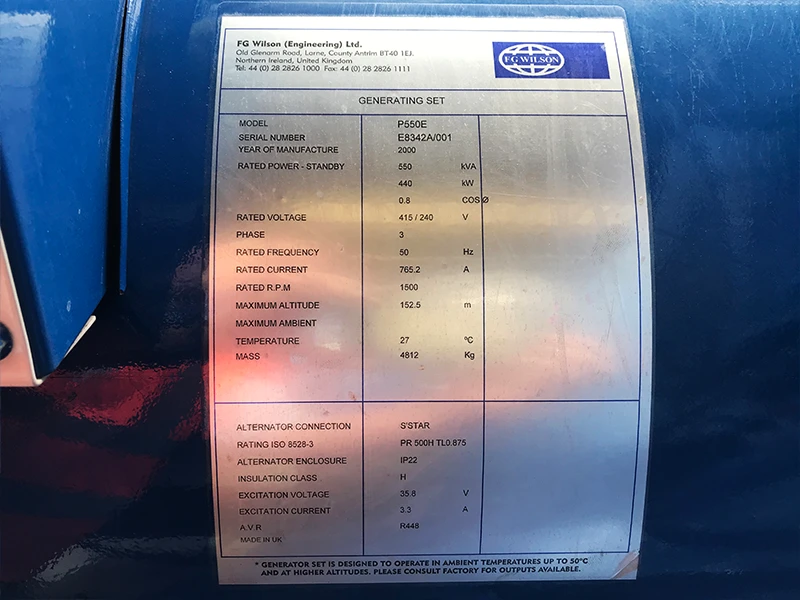

Manufacturer	FG Wilson - P550E
Year of Manufacture	2000
Standby	550.0 kVA / 440.0 kW
Prime	500.0 kVA / 400.0 kW

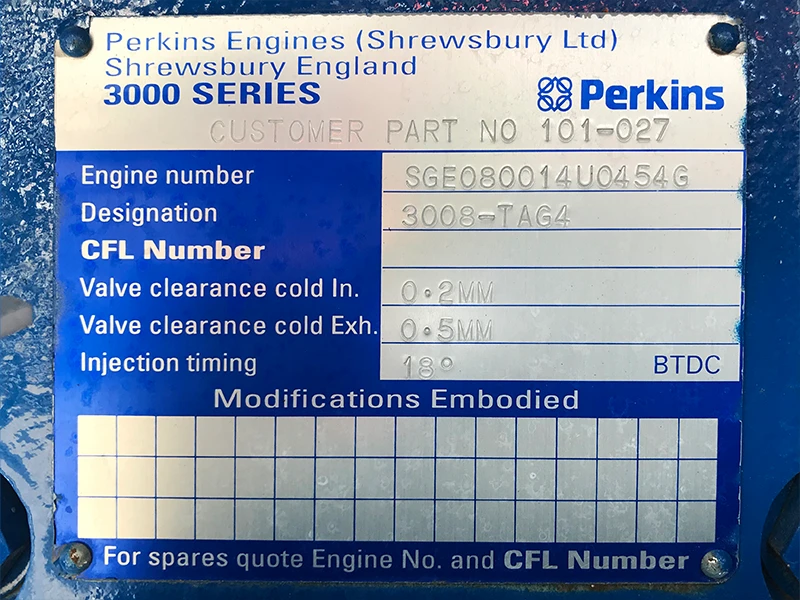

Engine	Perkins - 3008-TAG 4
Engine Hours	152 hrs

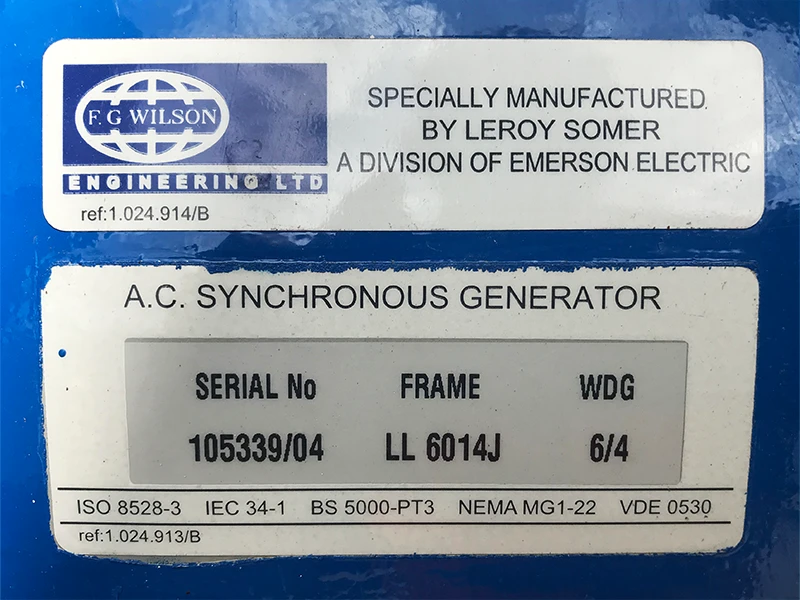

Alternator	Leroy Somer - LL6014J
Voltage	415/240 V
Current	765.0 A
Frequency	50 Hz

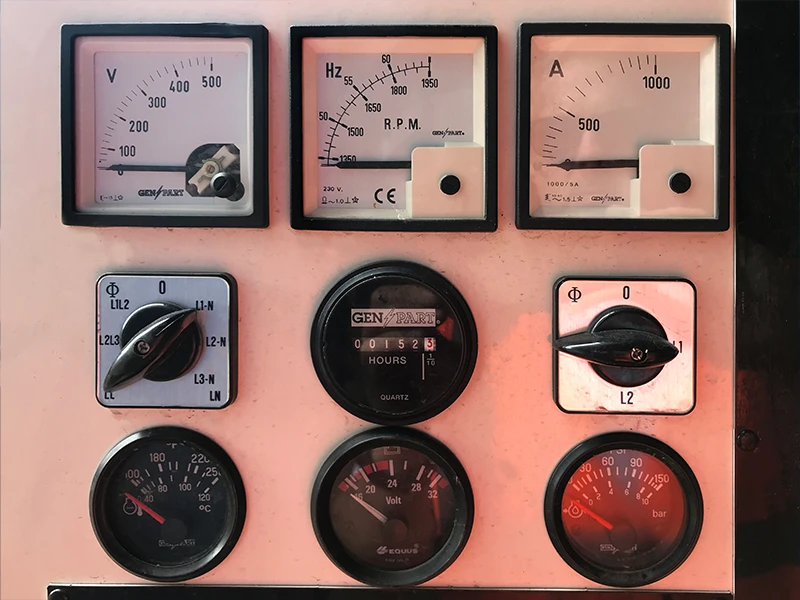

Control Panel	FG Wilson - 4101

Dimensions

Length	3,300 mm
Width	1,400 mm
Height	2,050 mm
Weight	4812.00 kg

Please Note: The dimensions and weight are approximate and may be estimated.

Downloadable Documents

Generator: XP550115 Datasheet

Stuart Group Brochure
