Used FG Wilson Perkins 800kVA Diesel Generator

Used FG Wilson 800 kVA / 640 kW standby diesel generator, powered by a Perkins 4006-23TAG2A engine, running a Leroy Somer 240/415 Volts, 1120 Amps, 50Hz alternator. It is controlled by an Woodward easYgen 3000 digital controller.

All used units are sold in good working order, tested, and serviced at our workshop before dispatch, complete with industry-leading warranty available.

For more information, please click on Data Sheet or contact our team.

Technical Data

Manufacturer	FG Wilson - P730P1 / P800E1
Year of Manufacture	2011
Standby	800.0 kVA / 640.0 kW
Prime	730.0 kVA / 584.0 kW

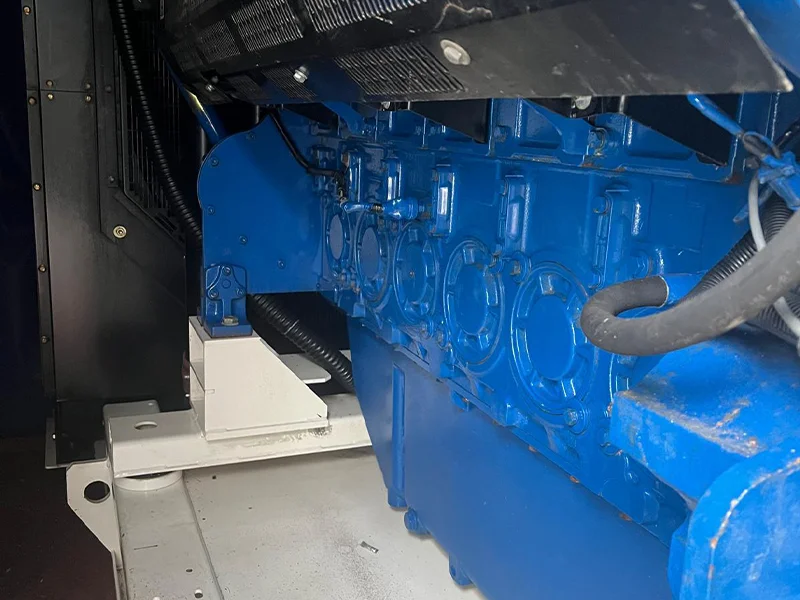

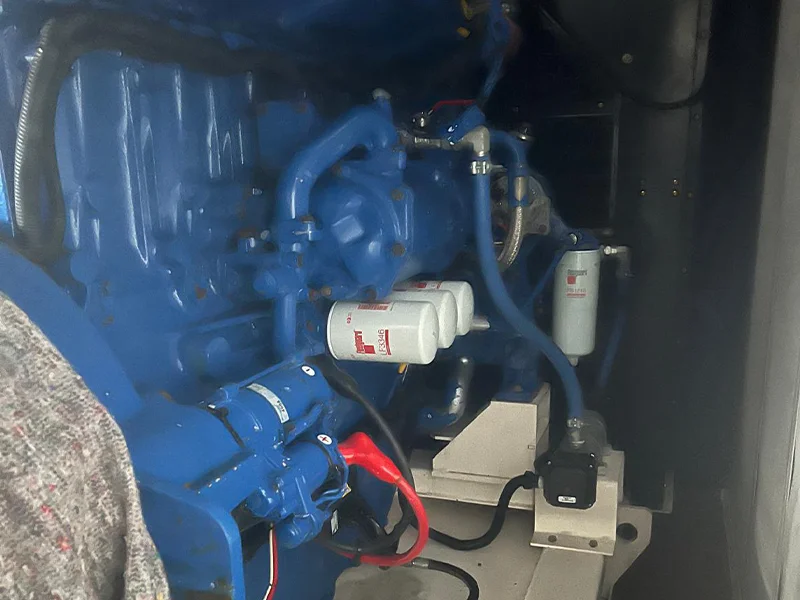

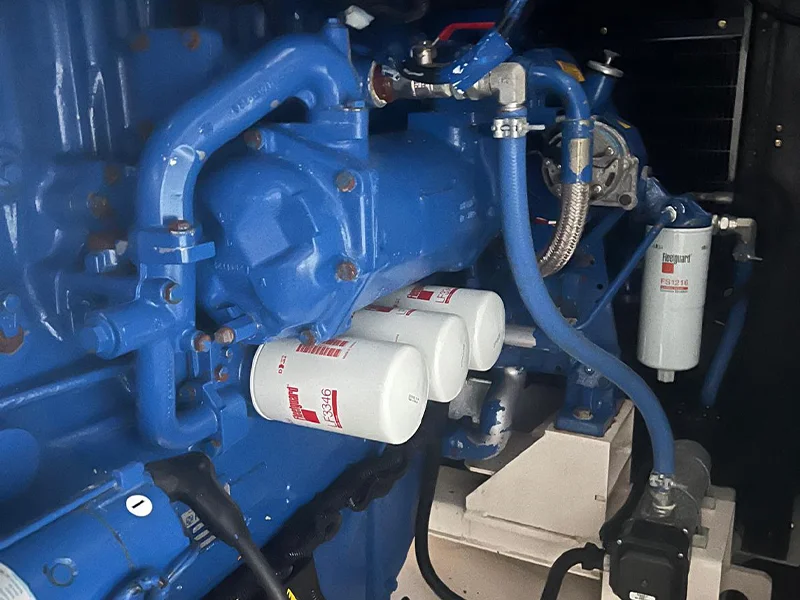

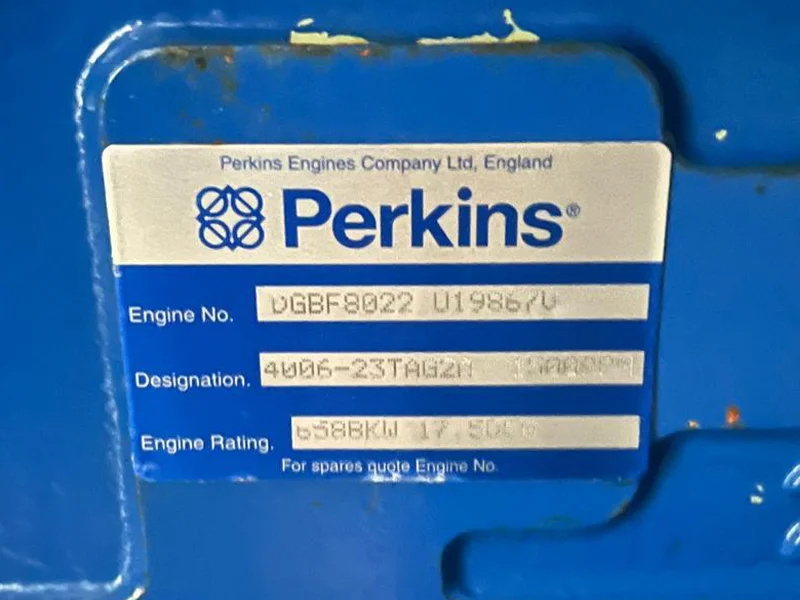

Engine	Perkins - 4006-23TAG2A

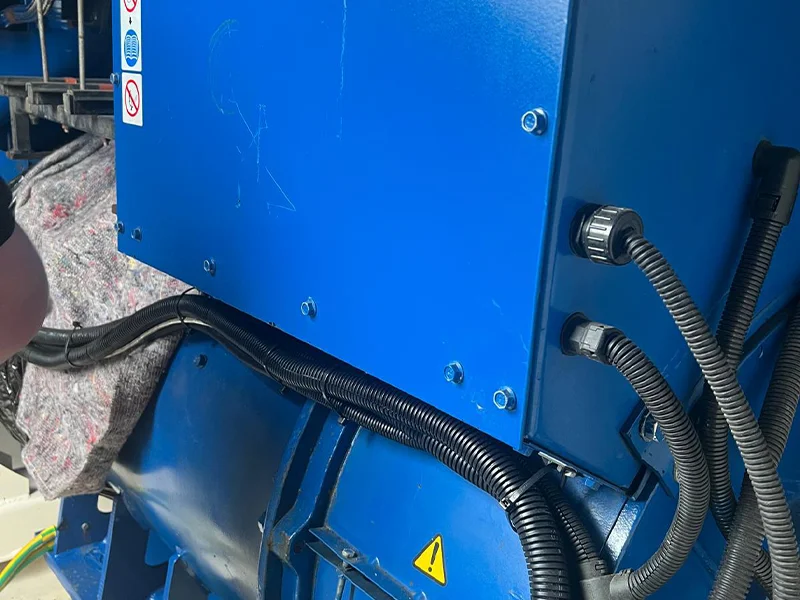

Alternator	Leroy Somer - LL7024L
Voltage	240/415 V
Current	1120.0 A
Frequency	50 Hz

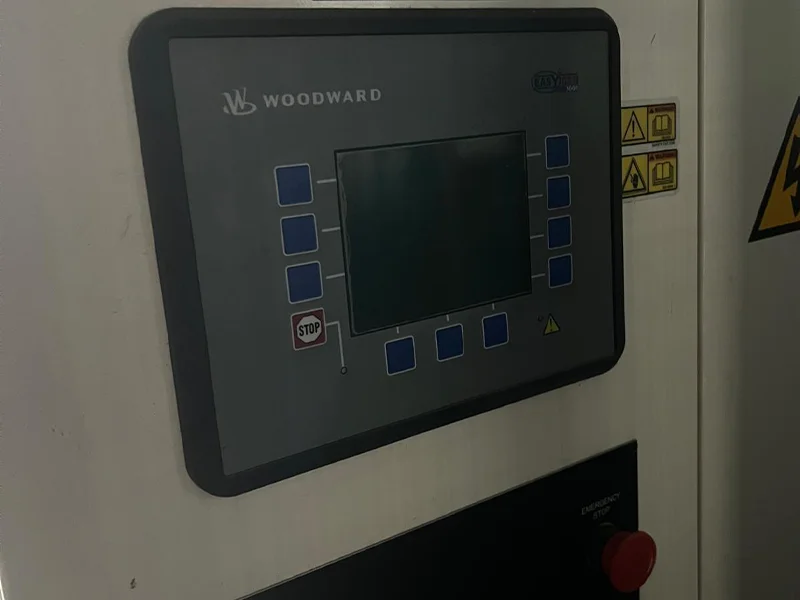

Control Panel	Woodward - easYgen 3000

Dimensions

Length	9,000 mm
Width	2,500 mm
Height	3,600 mm
Weight	18000.00 kg

Please Note: The dimensions and weight are approximate and may be estimated.
