Godwin Heidra 100SG
1 Images
- Price: On Request
- Current Stock: Contact us for Availability.
- Stock Number: Non Assigned
Godwin Heidra 100SG

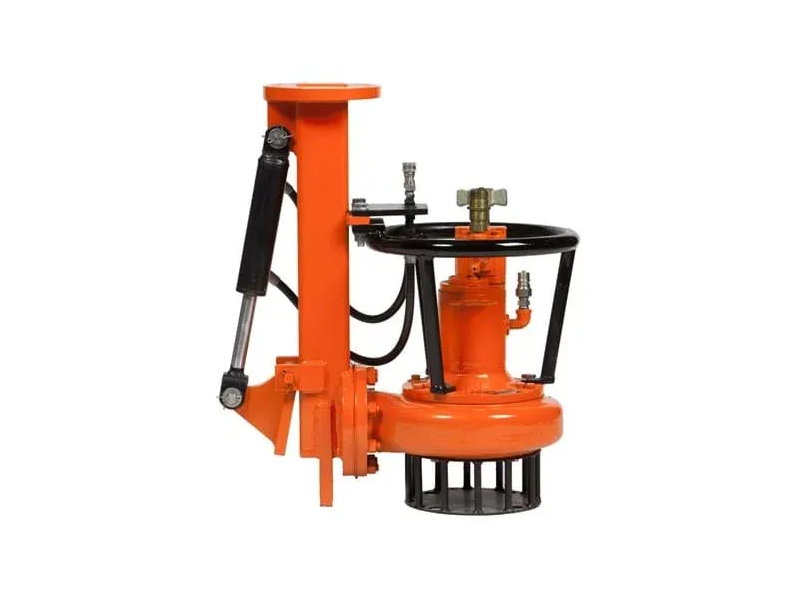

he Godwin Heidra 100SG hydraulic submersible pump is a compact self-contained pumping unit featuring a diesel driven power pack and hydraulic pump end. With variable speed diesel engine power, the Heidra 100SG can meet a variety of flow and head requirements up to 169 m³/hr and total dynamic head requirements up to 20 metres.
It has the ability to handle solids up to 45 mm in diameter. It also has dry running capabilities, a cast steel impeller, providing a rugged dewatering / solids handling, hydraulic submersible pump ready to go anywhere.
- Technical Data
Condition New Manufacturer Godwin Model / Part 100 SG Max Flow 169.00 m³/hr Max Head 20.00 m Suction Size 4 inch (100 mm) Discharge Size 4 inch (100 mm) Solids Handling 45 mm Drive Perkins 403D-15 Diesel Engine dB(A) @7m 64 - Dimensions
Length 1,800 mm Width 1,000 mm Height 1,900 mm Weight (Dry) 1275.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
