Godwin Heidra 150MR SG
1 Images
- Price: On Request
- Current Stock: Contact us for Availability.
- Stock Number: 150MRSG
Godwin Heidra 150MR SG

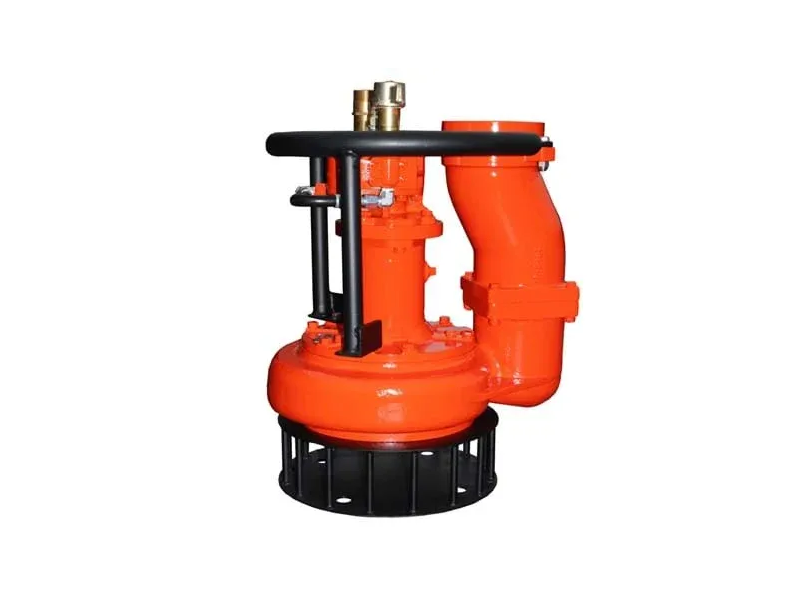

The Godwin Heidra 150MR SG hydraulic submersible pump is a compact self-contained pumping unit featuring a diesel driven power pack and 6'' hydraulic pump end. With variable speed diesel engine power, the Heidra 150MR SG can meet a variety of flow and head requirements up to 520 m³/hr and total dynamic head requirements up to 47 metres.
It has the ability to handle solids up to 65 mm in diameter. It also has dry running capabilities, a cast chromium steel impeller, providing a rugged dewatering / solids handling, hydraulic submersible pump ready to go anywhere.
- Technical Data
Condition New Manufacturer Godwin Model / Part 150M SG Max Flow 520.00 m³/hr Max Head 47.00 m Suction Size 6 inch (150 mm) Discharge Size 6 inch (150 mm) Solids Handling 65 mm Drive Perkins 1104D-44T Diesel Engine dB(A) @7m 65 - Dimensions
Length 2,500 mm Width 1,300 mm Height 1,900 mm Weight (Dry) 2250.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
