Godwin Heidra 150V SG
Godwin Heidra 150V SG

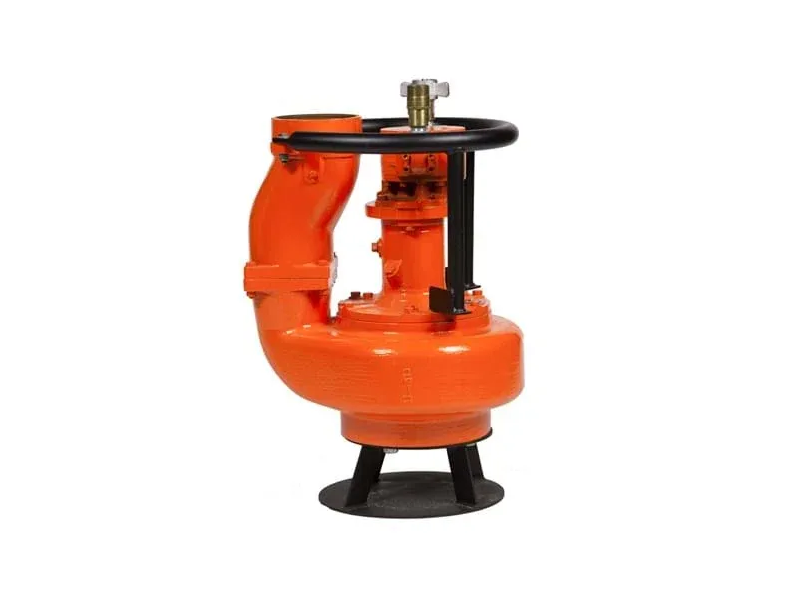

The Godwin Heidra 150V SG hydraulic submersible pump is a compact self-contained pumping unit featuring a diesel driven power pack and hydraulic pump end. With variable speed diesel engine power, the Heidra 150V SG can meet a variety of flow and head requirements up to 407 m³/hr and total dynamic head requirements up to 18 metres.
It has the ability to handle solids up to 125 mm in diameter. It also has dry running capabilities, a cast steel impeller, providing a rugged dewatering / solids handling, hydraulic submersible pump ready to go anywhere.
- Technical Data
Condition New Manufacturer Godwin Model / Part 150V SG Max Flow 407.00 m³/hr Max Head 18.00 m Suction Size 6 inch (150 mm) Discharge Size 6 inch (150 mm) Solids Handling 125 mm Drive Perkins 1104D-44T Diesel Engine dB(A) @7m 65 - Dimensions
Length 821 mm Width 466 mm Height 1,067 mm Weight (Dry) 260.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
