Godwin Heidra 200 SG

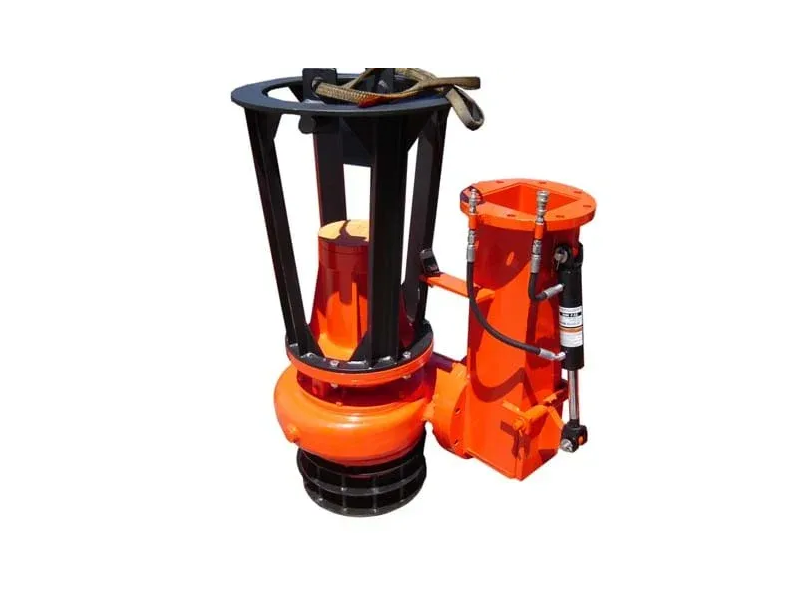

The Godwin Heidra 200 SG hydraulic submersible pump is a compact self-contained pumping unit featuring a diesel driven power pack and hydraulic pump end. With variable speed diesel engine power, the Heidra 200 SG can meet a variety of flow and head requirements up to 518 m³/hr and total dynamic head requirements up to 24 metres.
It has the ability to handle solids up to 75 mm in diameter. It also has dry running capabilities, a cast steel impeller, providing a rugged dewatering / solids handling, hydraulic submersible pump ready to go anywhere.
- Technical Data
Condition New Manufacturer Godwin Model / Part 200 SG Max Flow 518.00 m³/hr Max Head 24.00 m Suction Size 8 inch (200 mm) Discharge Size 8 inch (200 mm) Solids Handling 75 mm Drive Perkins 1104D-44T Diesel Engine dB(A) @7m 68 - Dimensions
Length 2,890 mm Width 1,303 mm Height 2,100 mm Weight (Dry) 2225.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
