Godwin Heidra 80HH
Godwin Heidra 80HH

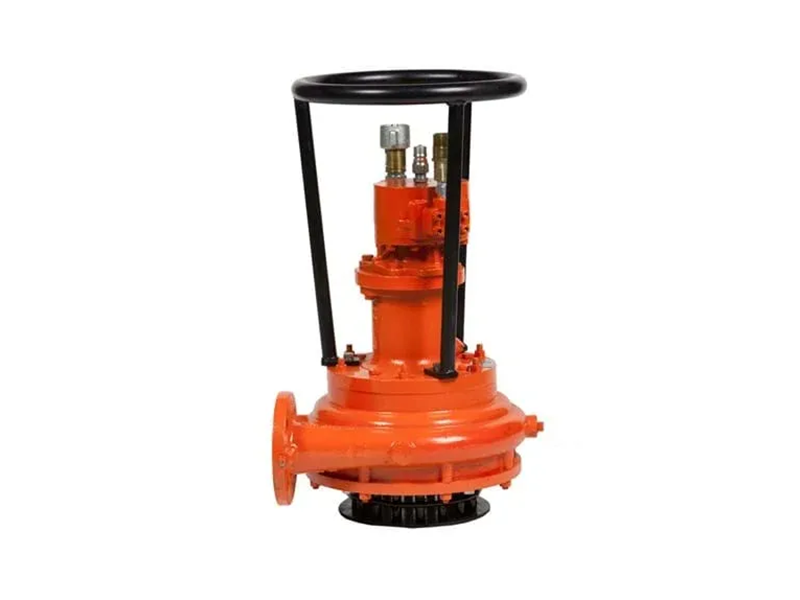

The Godwin Heidra 80HH hydraulic submersible pump is a compact self-contained pumping unit featuring a diesel driven power pack and hydraulic pump end. With variable speed diesel engine power, the Heidra 80HH can meet a variety of flow and head requirements up to 89 m³/hr and total dynamic head requirements up to 64 metres.
It has the ability to handle solids up to 25 mm in diameter. It also has dry running capabilities, a cast steel impeller, providing a rugged dewatering / solids handling, hydraulic submersible pump ready to go anywhere.
- Technical Data
Condition New Manufacturer Godwin Model / Part 80HH Max Flow 89.00 m³/hr Max Head 64.00 m Suction Size 3¼ inch (85 mm) Discharge Size 75 mm (75 mm) Solids Handling 25 mm Drive Perkins 1104D-44T Diesel Engine dB(A) @7m 65 - Dimensions
Length 450 mm Width 510 mm Height 800 mm Weight (Dry) 170.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
