Godwin Heidra 150HH
Godwin Heidra 150HH

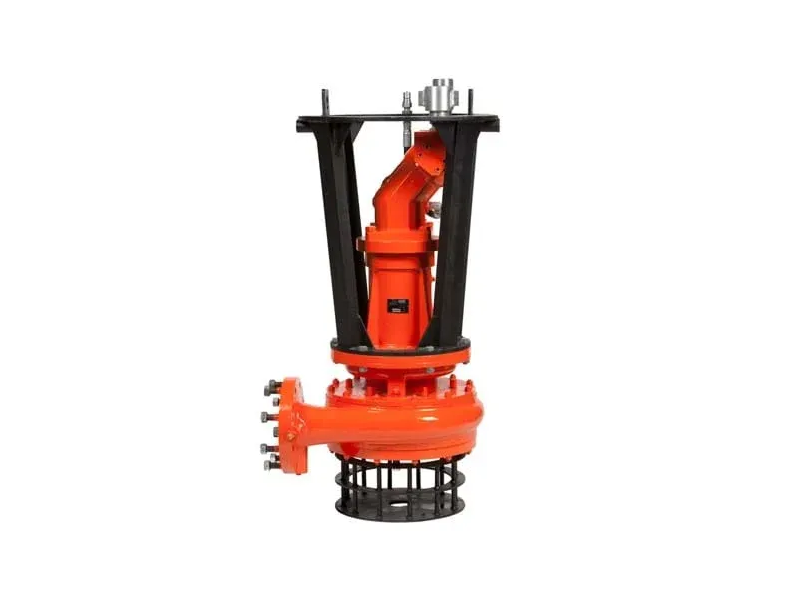

The Godwin Heidra 150HH hydraulic submersible pump is a compact self-contained pumping unit featuring a diesel driven power pack and hydraulic pump end. With variable speed diesel engine power, the Heidra 150HH can meet a variety of flow and head requirements up to 218 m³/hr and total dynamic head requirements up to 108 metres.
It has the ability to handle solids up to 35 mm in diameter. It also has dry running capabilities, a cast steel impeller, providing a rugged dewatering / solids handling, hydraulic submersible pump ready to go anywhere.
- Technical Data
Condition New Manufacturer Godwin Model / Part 150HH Max Flow 218.00 m³/hr Max Head 108.00 m Suction Size 6 inch (150 mm) Discharge Size 6 inch (150 mm) Solids Handling 35 mm Drive Perkins 1106D-E66TA Diesel Engine dB(A) @7m 68 - Dimensions
Length 630 mm Width 790 mm Height 1,300 mm Weight (Dry) 425.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
