Godwin Heidra 110HH
Godwin Heidra 110HH

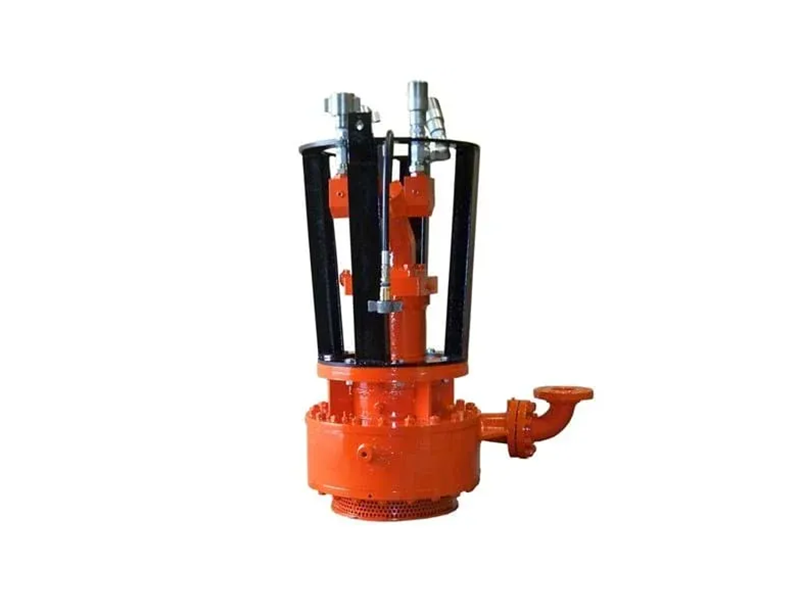

The Godwin Heidra 110HH hydraulic submersible pump is a compact self-contained pumping unit featuring a diesel driven power pack and hydraulic pump end. With variable speed diesel engine power, the Heidra 110HH can meet a variety of flow and head requirements up to 102 m³/hr and total dynamic head requirements up to 150 metres.
It has the ability to handle solids up to 20 mm in diameter. It also has dry running capabilities, a cast steel impeller, providing a rugged dewatering / solids handling, hydraulic submersible pump ready to go anywhere.
- Technical Data
Condition New Manufacturer Godwin Model / Part 110HH Max Flow 102.00 m³/hr Max Head 150.00 m Suction Size 4 inch (100 mm) Discharge Size 3 inch (80 mm) Solids Handling 20 mm Drive Perkins 1106D-E66TA Diesel Engine dB(A) @7m 68 - Dimensions
Length 700 mm Width 700 mm Height 1,295 mm Weight (Dry) 715.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
