Godwin Dri-Prime SD150M
12 Images
- Price: On Request
- Current Stock: Contact us for Availability.
- Stock Number: SD150M
Godwin Dri-Prime SD150M
The SD150M is a member of the Godwin Standard Dewatering Series - founded on the Godwin pedigree of quality and reliability and engineered to meet your basic dewatering needs with mechanical efficiencies and durability. Ready to go at a moment’s notice with the iconic Godwin Dri-Prime and dry-running oil bath mechanical seal. The SD150M can be deployed in your toughest applications on an as needed basis.
PRODUCT FEATURES
- Simple and routine maintenance to increase uptime
- Godwin Dri-Prime is a continuously operated venturi air ejector priming device which requires no periodic adjustment or control
- Extensive application flexibility. It will handle wastewater, slurries and liquids with solids up to 75 mm (3 in) in diameter
- Dry-running high-pressure oil bath mechanical seal, with high abrasion resistant silicon carbide faces

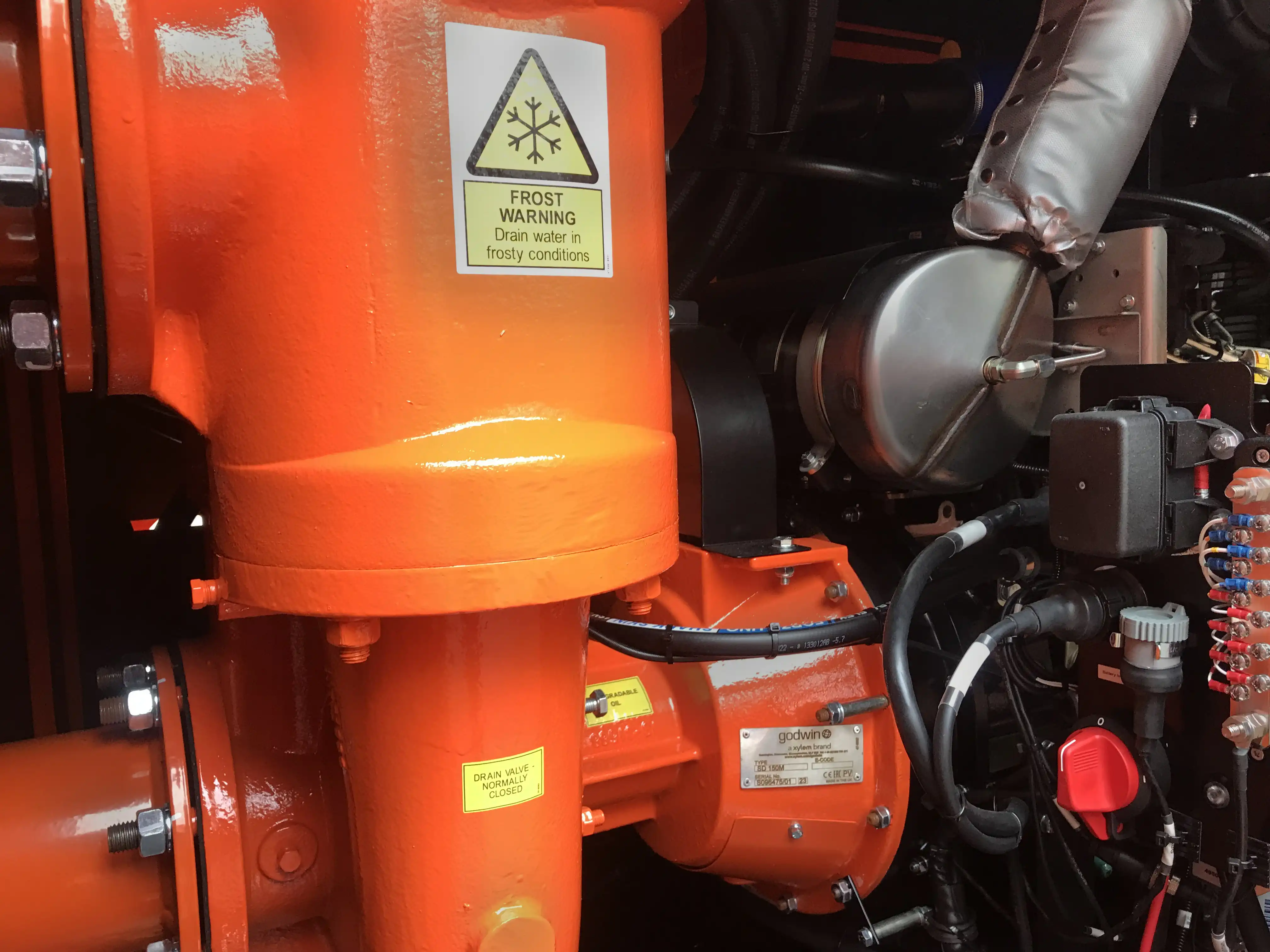

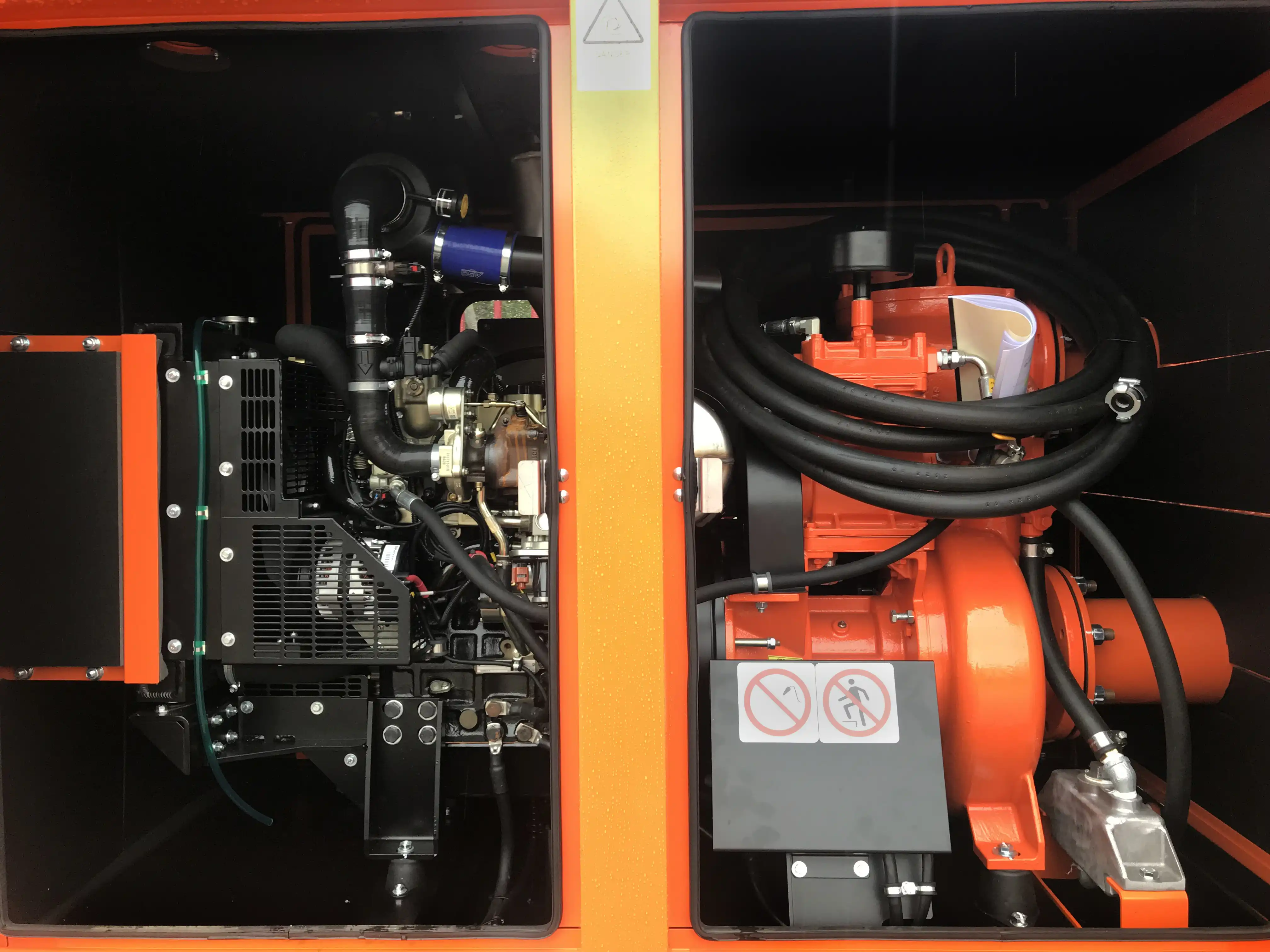

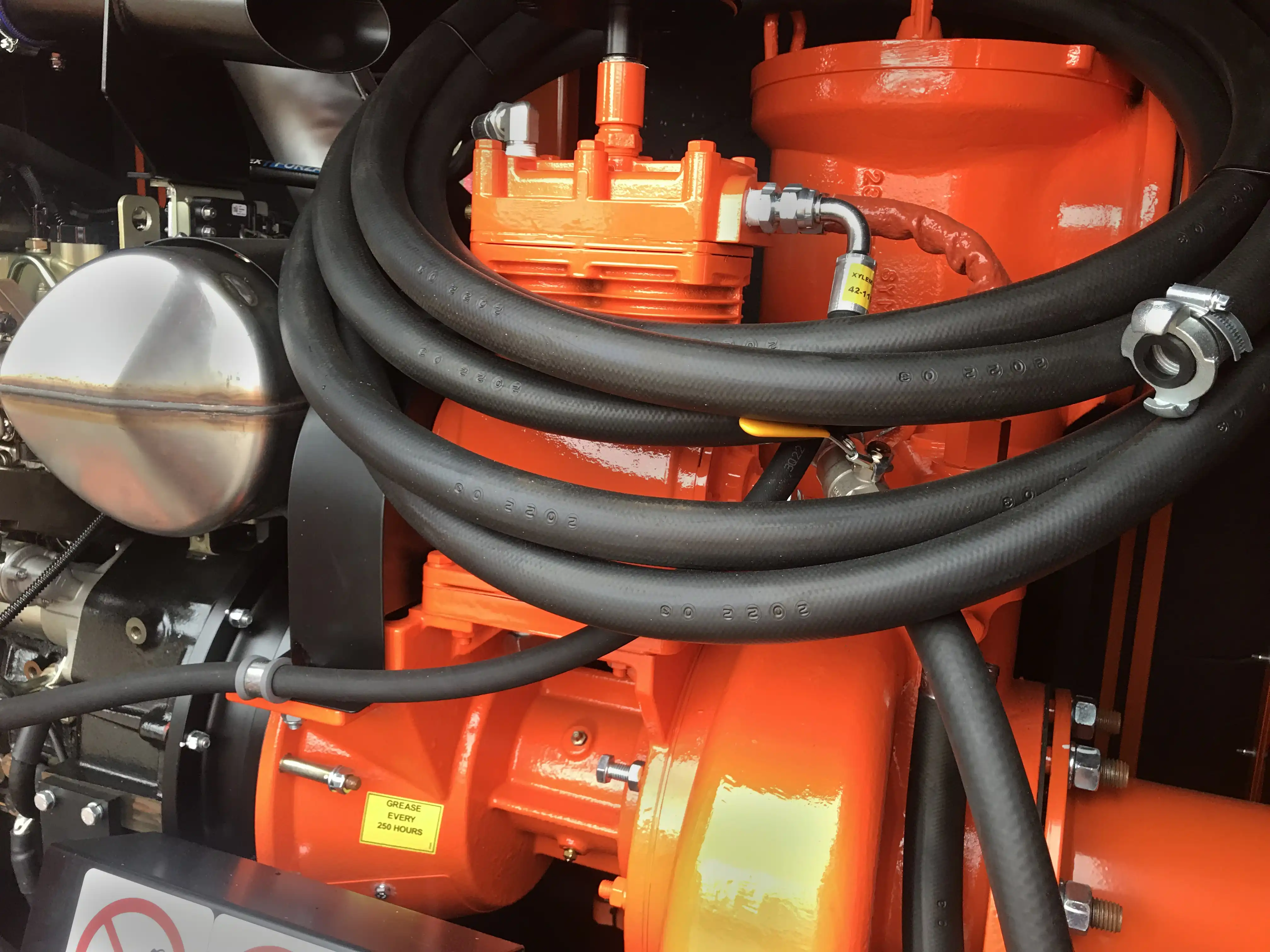

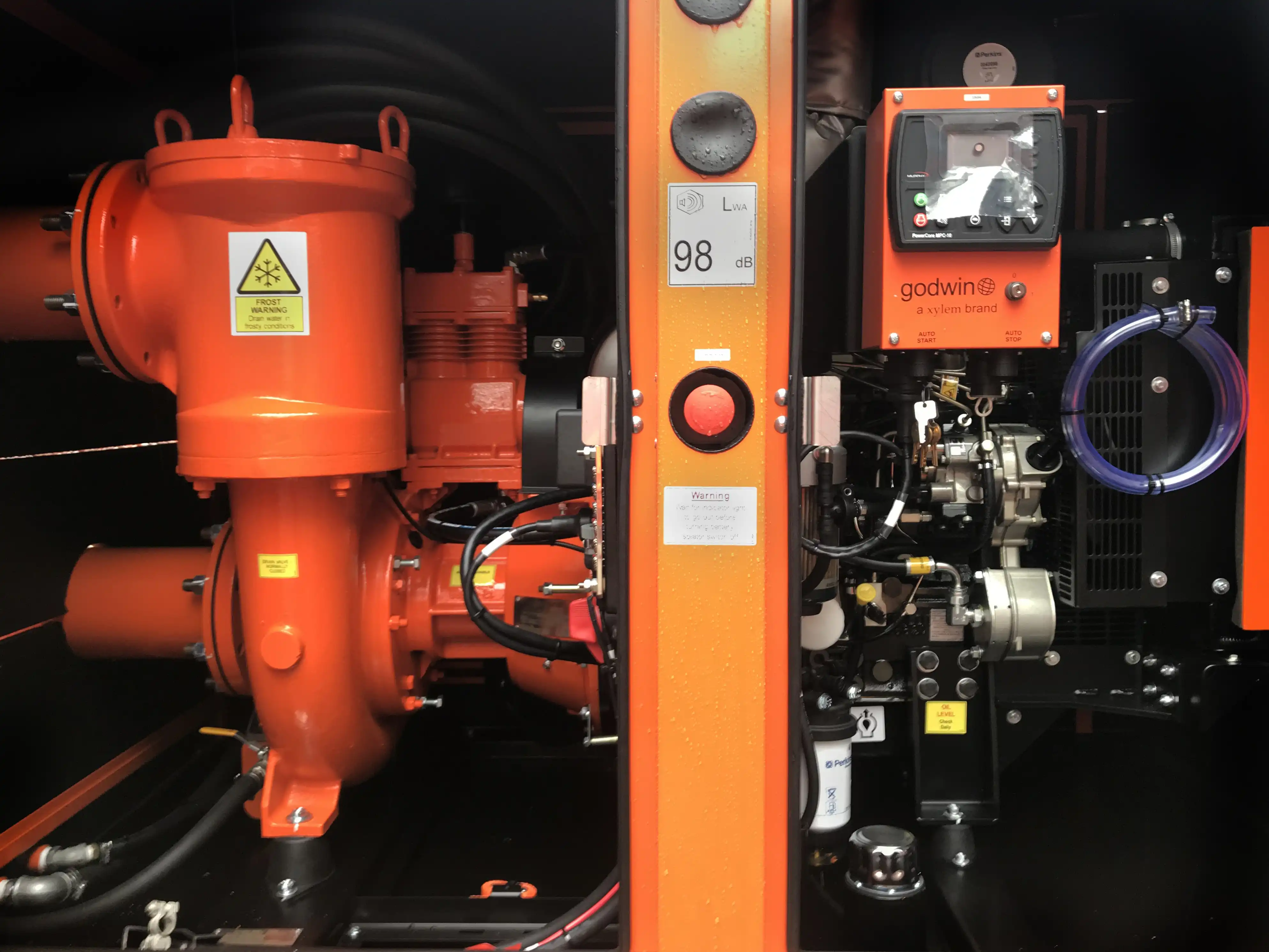

- A close-coupled centrifugal pump with Godwin Dri-Prime system mounted to a diesel engine or electric drive
- All cast iron construction with cast steel impeller

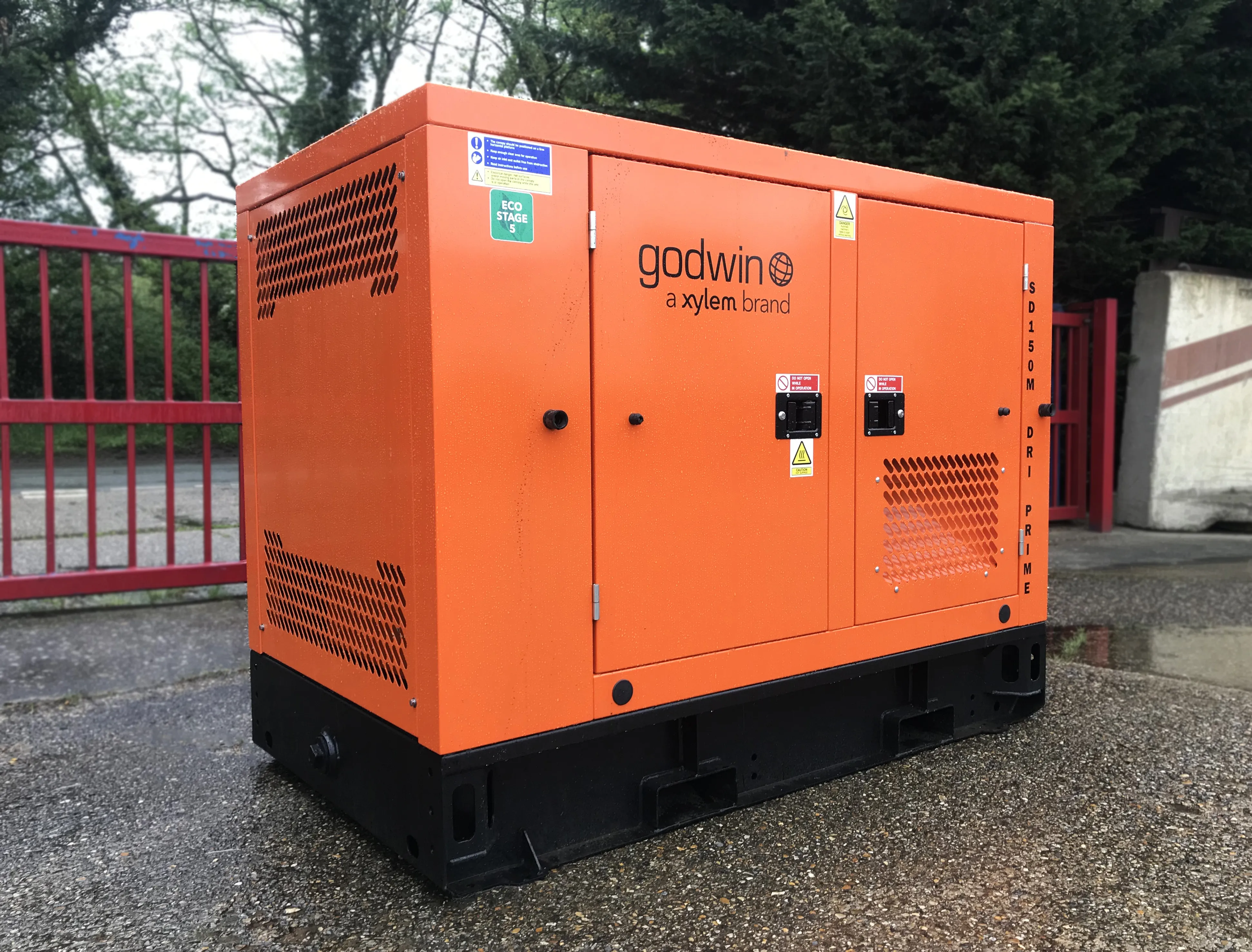

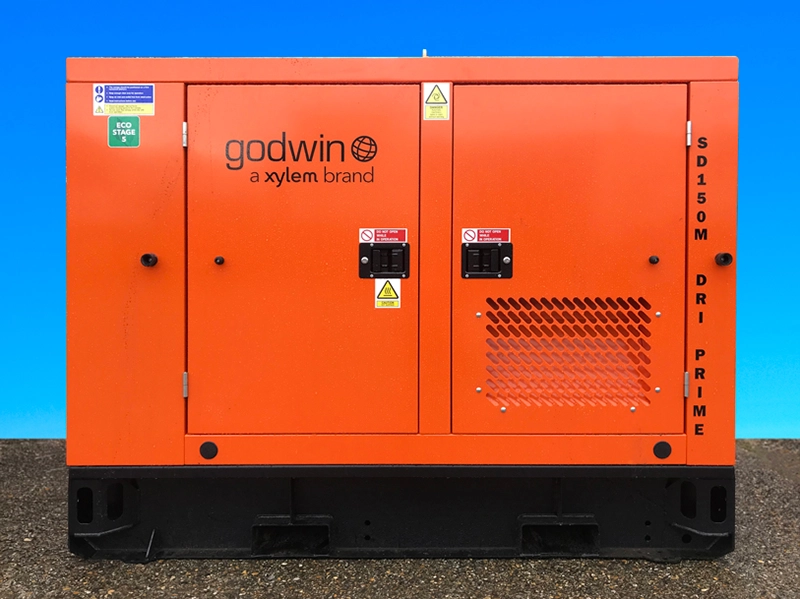

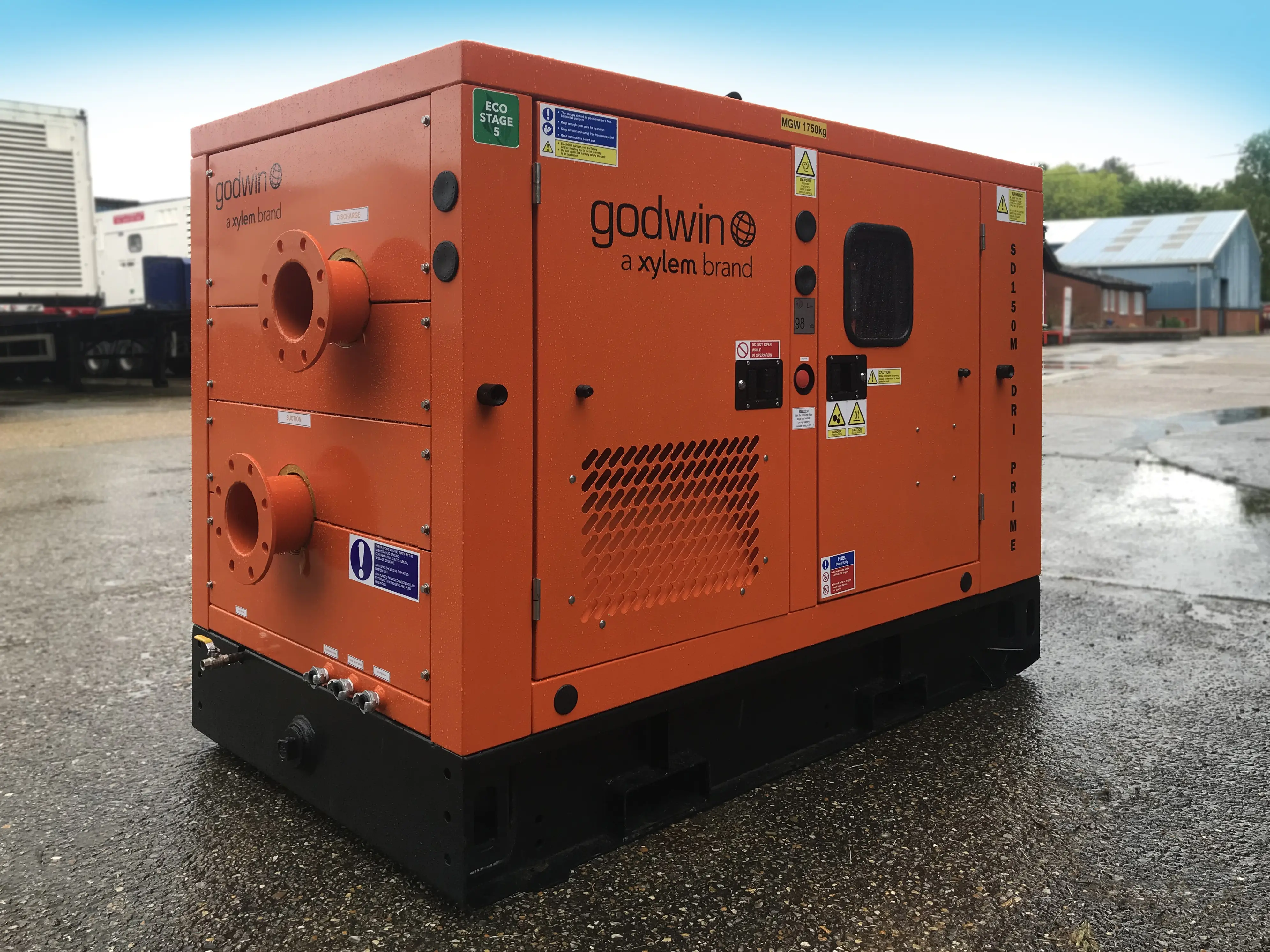

- Regional configurations include: Diesel with Sound Attenuated Enclosure; or electric as Open Skidbase
- Standard engines and motors are compliant with regional emissions and efficiency legislation
- Technical Data

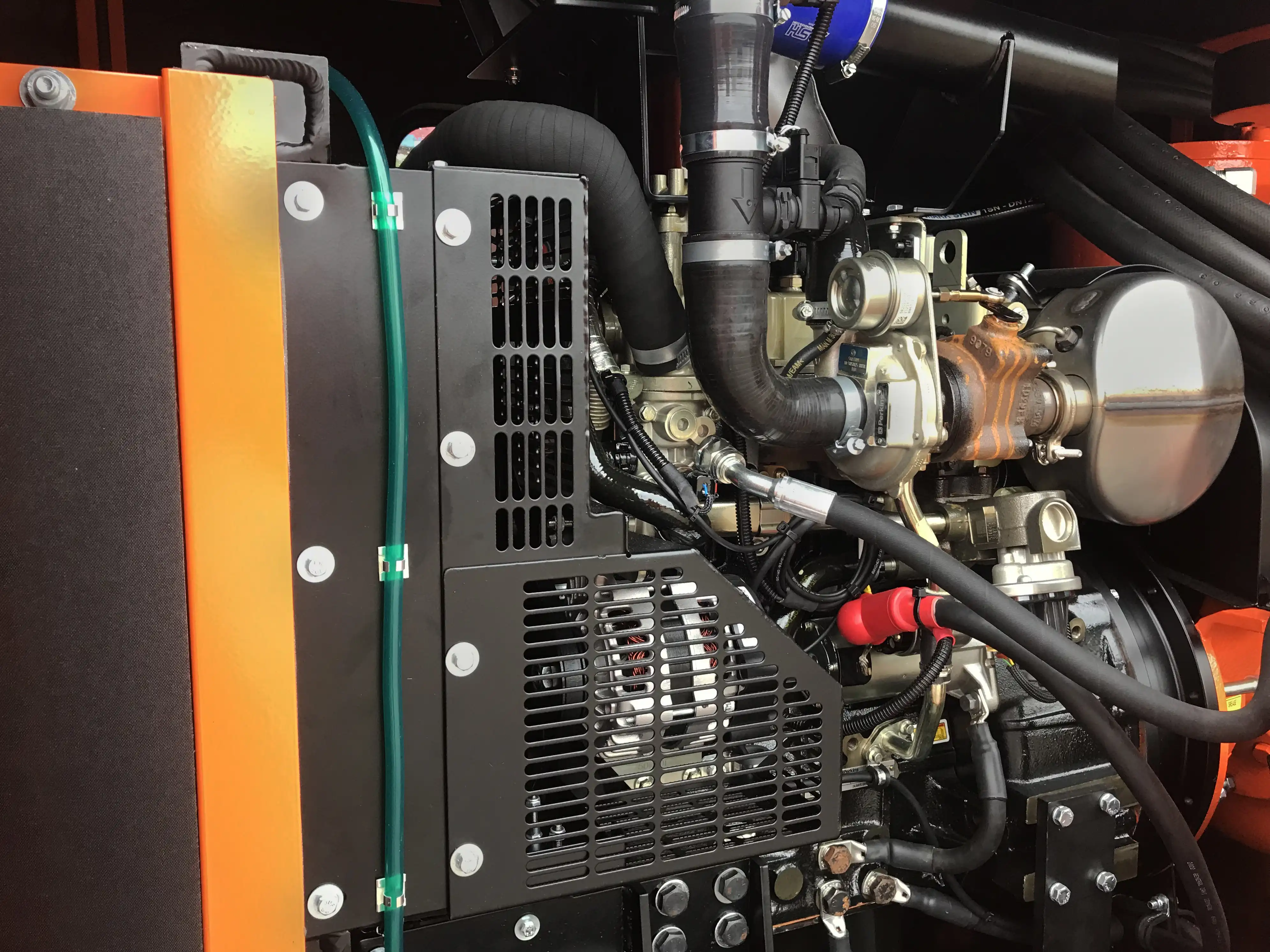

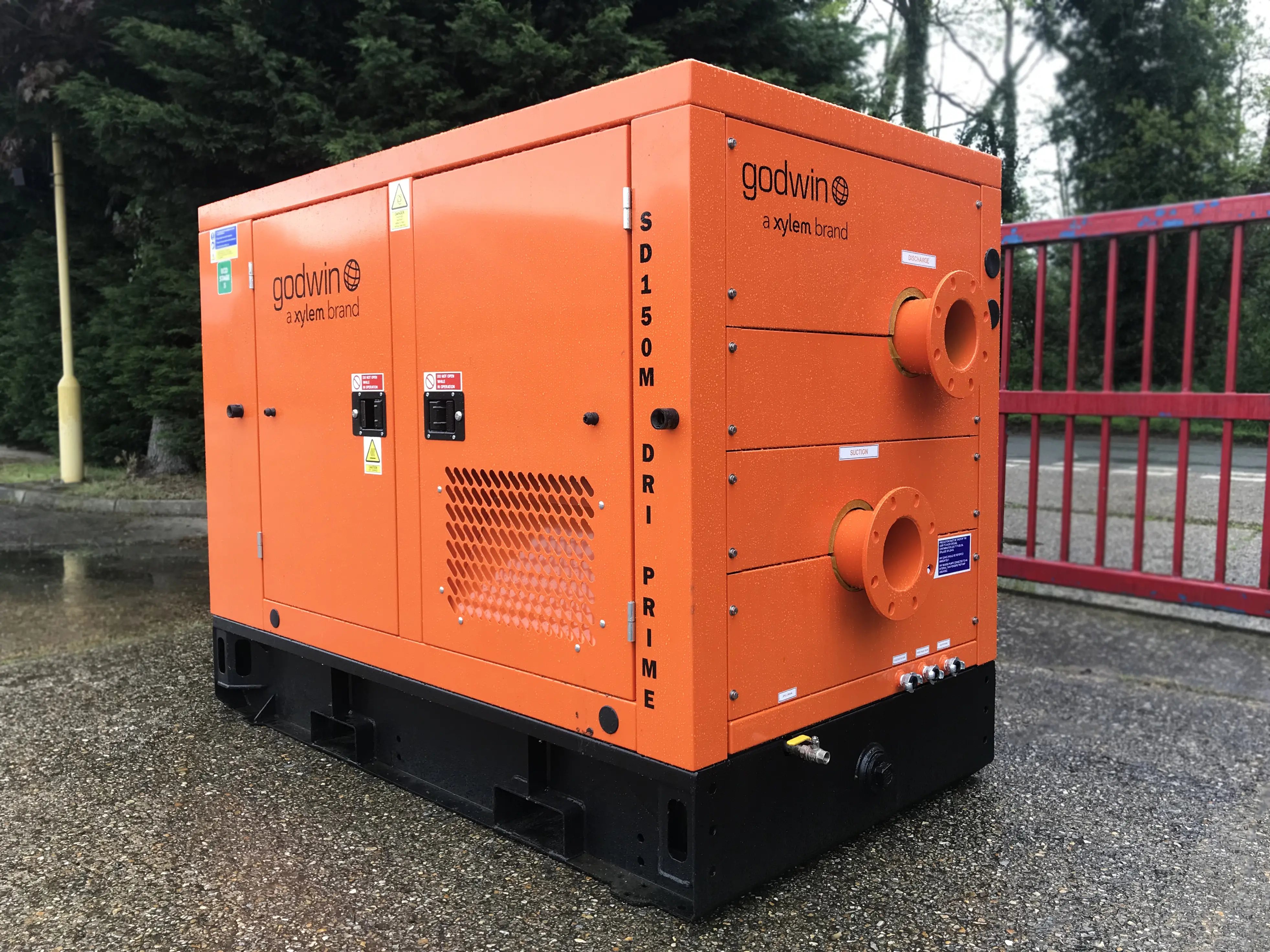

Condition New Manufacturer Godwin Model / Part SD150M Max Flow 485.00 m³/hr Max Head 150.00 m Suction Size 6 inch (150 mm) Discharge Size 6 inch (150 mm) Solids Handling 75 mm Drive Perkins Diesel Engine Engine Perkins 403J-E17T / Perkins 404D-22T dB(A) @7m 66 - Downloadable Documents
