Tsurumi LB Manual Submersible Drainage Pumps
These models incorporate a dual position outlet port, to enable the user to position the outlet hose horizontally or vertically and avoid it kinking.
A choice of either 0.48kW or 0.75kW motors in the range facilitates cost effective pump selection.
A combination of a rubber pump chamber and a urethane vortex impeller provides excellent wear resistance in site water applications that contain sand and silt in suspension, thus maintaining performance and reliability. Both models use a 403 stainless steel shaft that is fitted with an ultra hardwearing, silicon carbide, double mechanical seal, (in an oil chamber), with an oil lifter to maintain seal lubrication during operation in any position.
Supplied with 10 metres of heavy duty, H07RN-F rubber power cable.
- Technical Data

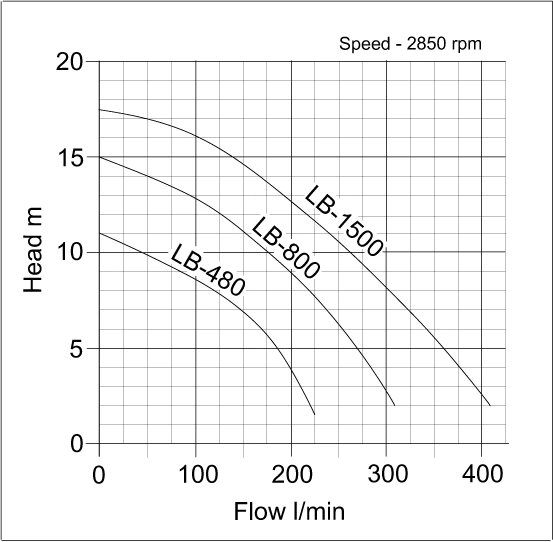

Condition New Manufacturer Tsurumi Model / Part LB Manual Outlet (mm/BSPM) 50 - 2" Motor Output (kW) 0.48 -1.5 Max Head (m) 11 - 17.5 Max Flow (I/min) 225 - 420 Phases 1 Free Passage (mm) 6 - Model Variants
