Used Kirloskar DSM 125-4 High Head Pump

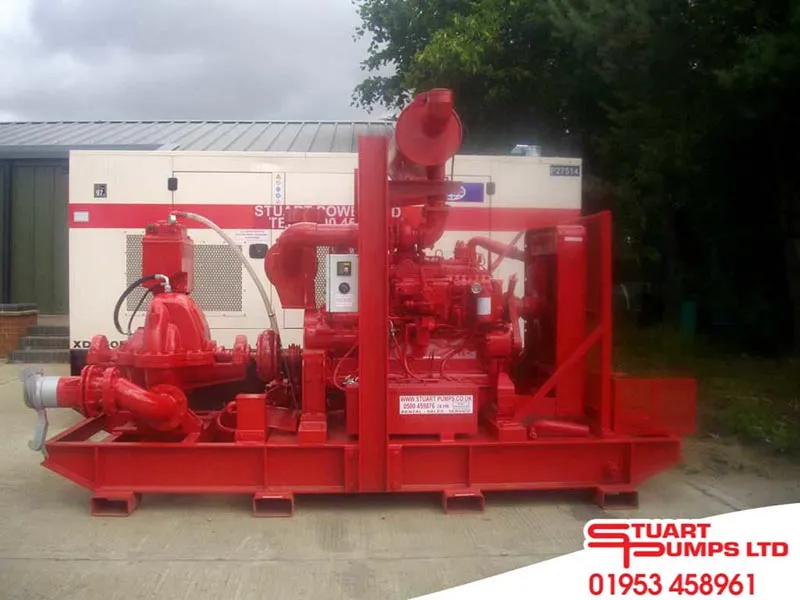

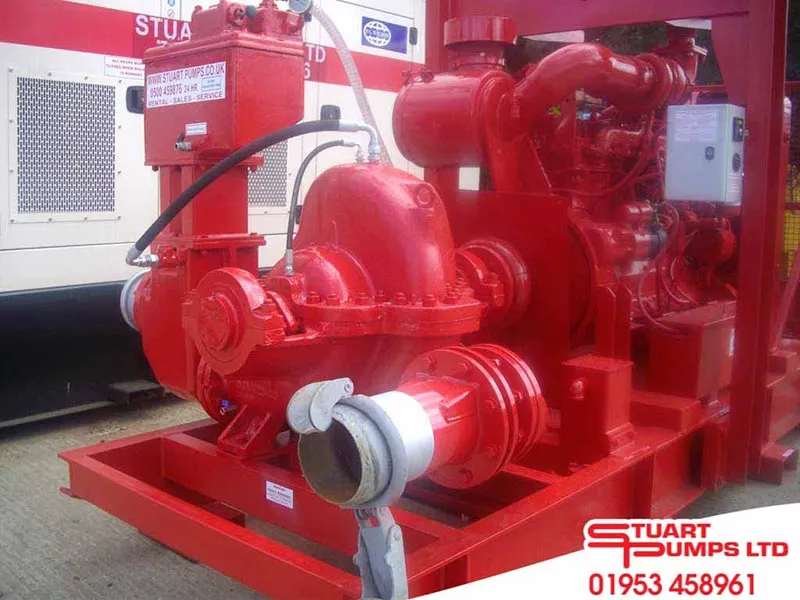

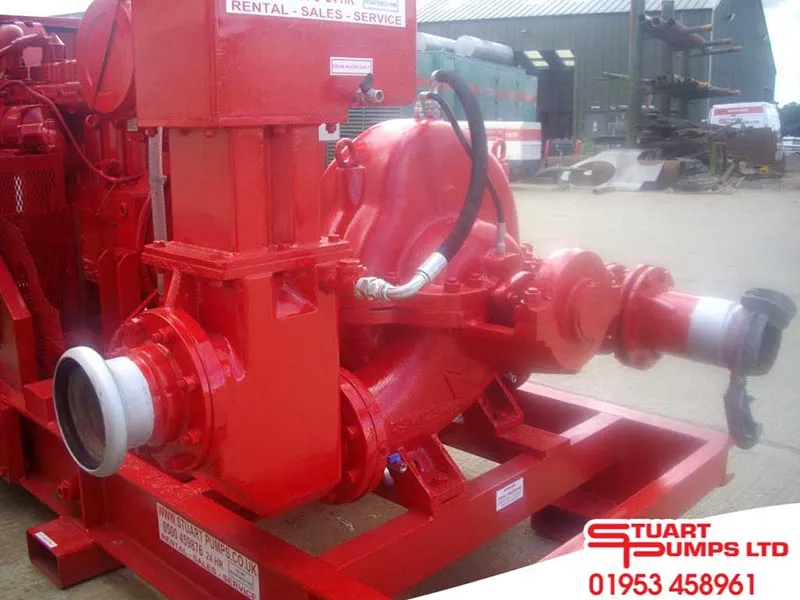

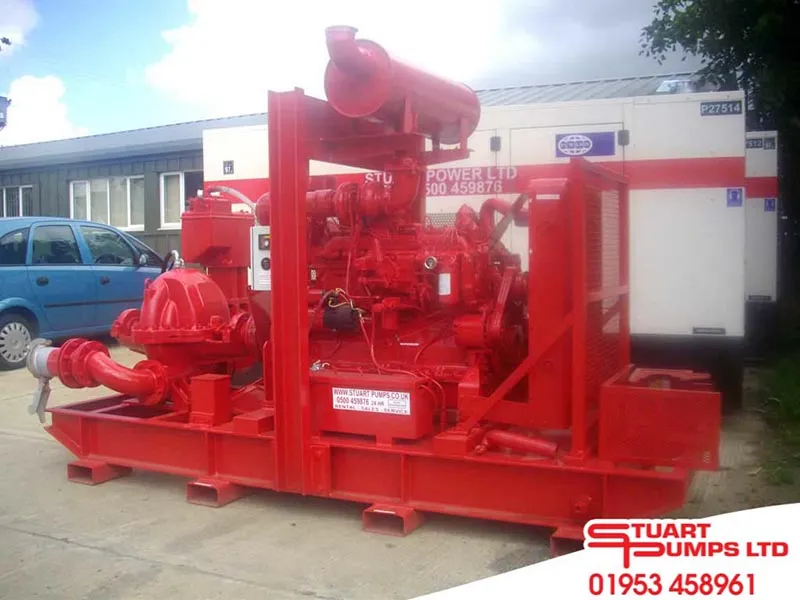

Kirloskar 150mm x 125mm DSM 125-4 split-casing pump being two stage impeller manufactured in quality cast iron, bronze type wear rings, stainless steel shaft with multi ring packed glands and outboard bearing.

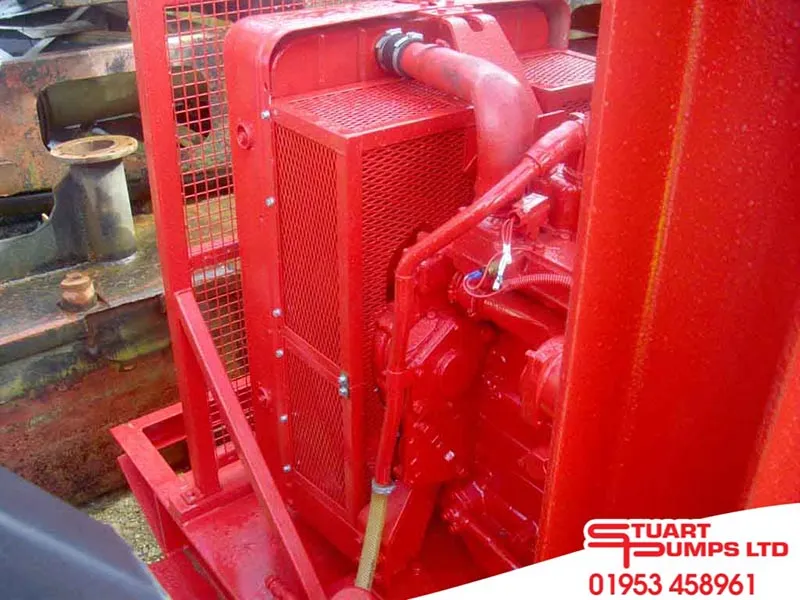

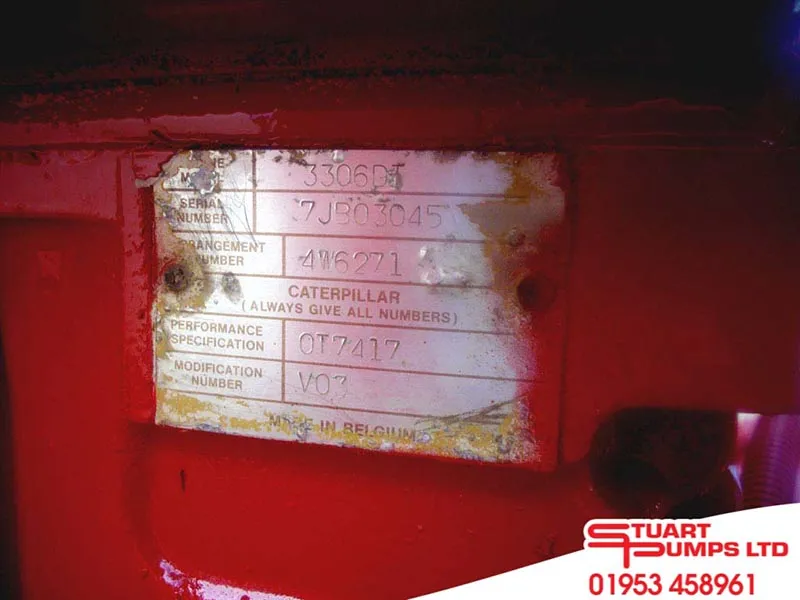

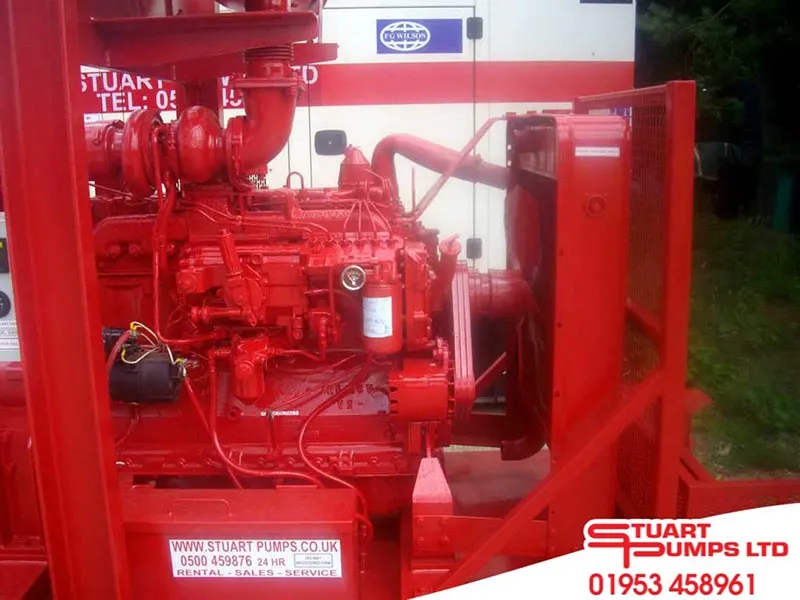

Coupled to a refurbished Caterpillar 3306 DT water cooled diesel engine with variable speed throttle, with 24 volt electrics and control panel.
This pump is fitted with SPP Automatic Priming equipment with a 25CFM vacuum pump being oil lubricated. All mounted on robust chassis fuel tank frame with central lifting frame and fork lift pockets.
Typical applications are: Pipeline testing, mine de-watering, sealed cable ploughing installation, hydro mining and fire installation.
This pump should not be used on abrasive pumping duties for long periods however we can recommend pumps to possibly suit these applications.
All guards are fully fitted to CE requirements.
Please consider the suction lift for NPSHr.
- Technical Data
Condition Used (Very Good Condition) Manufacturer Kirloskar Model / Part DSM 125-4 Max Flow 430.00 m³/hr Suction Size 6 inch (150 mm) Discharge Size 5 inch (125 mm) Drive Caterpillar 3306 DT Diesel Engine - Downloadable Documents
