Used Crane Ltd 5B GB R Irrigation Boost Pump
Used Crane Ltd 5B GB R Irrigation Boost Pump

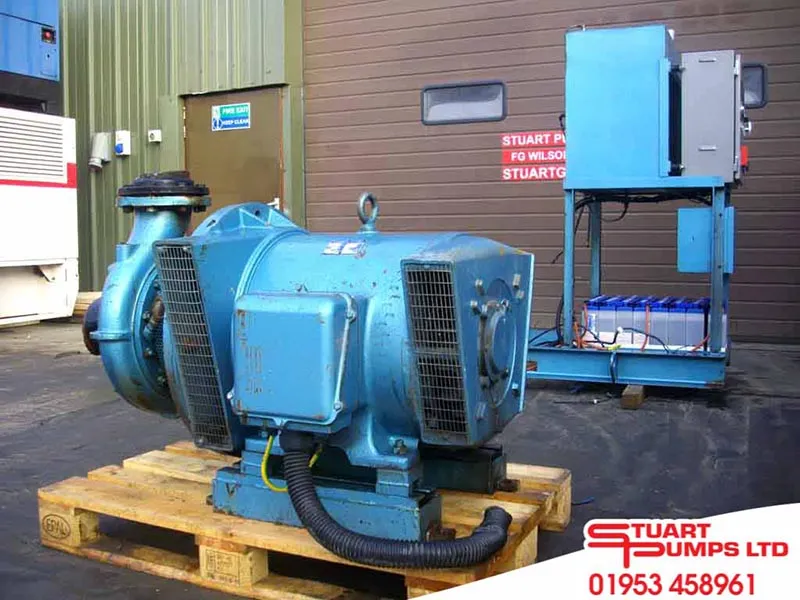

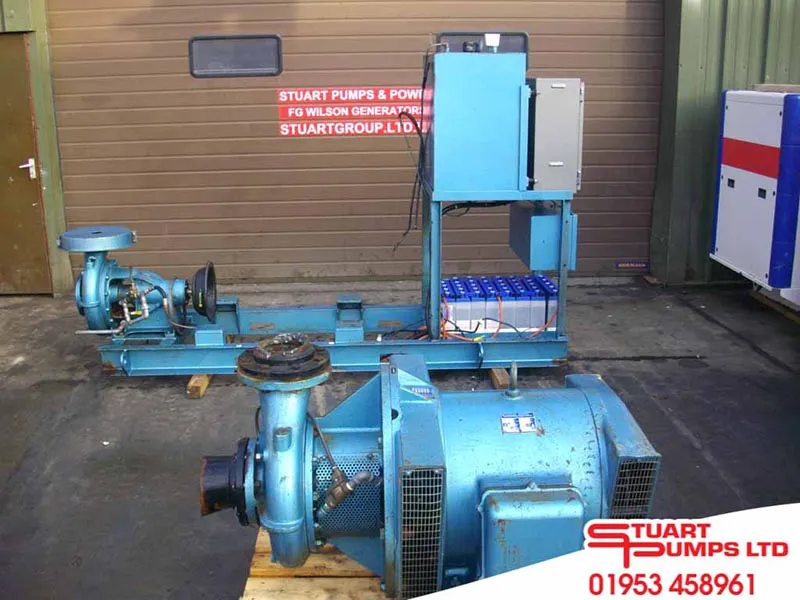

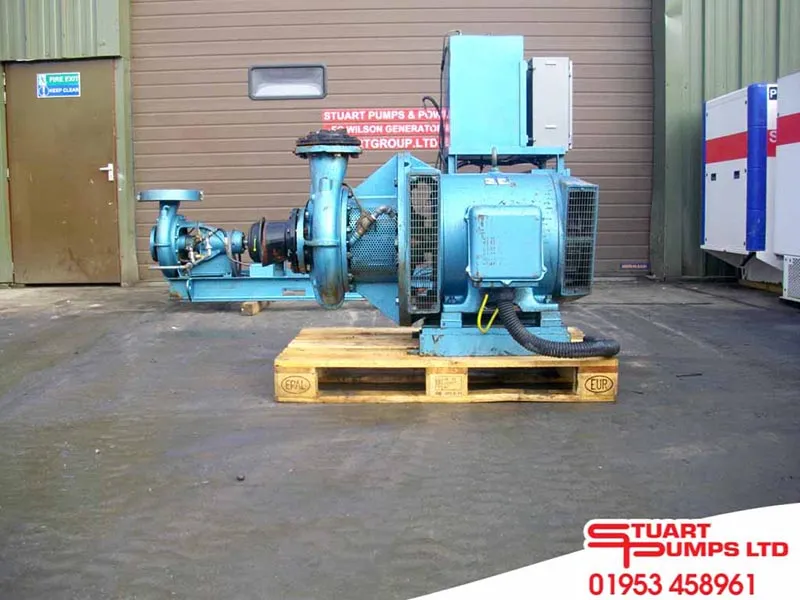

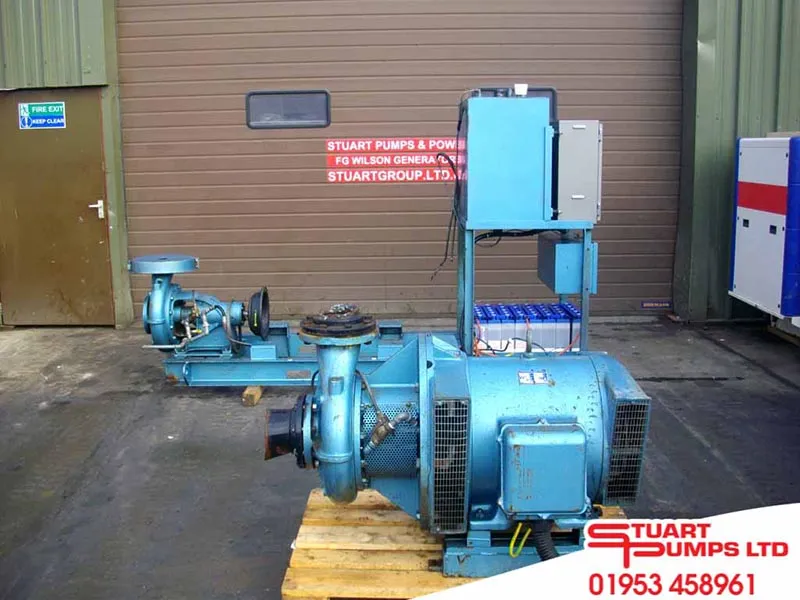

Used Crane 5B GB R Irrigation Boostpump with 5"/125mm flanged suction and 5"/125mm flanged delivery branches.
Driven by a Brook Crompton, 400v, 110kw, 181a, 50hz, TEFC Electric Motor
- Serial No: 5175-1
- Product Code: 5B GB R
- BHP 150 @ 2900RPM
- 5" in and out.
- Brook Crompton 110kW, 2920RPM electric motor (s/no: T992P).
Sold fully checked, serviced and tested with 3months return to base UK warranty.
- Technical Data
Condition Used (Good Condition) Manufacturer Crane Model / Part 5B GB R Max Flow 240.00 m³/hr Max Head 8.20 bar Suction Size 5 inch (125 mm) Discharge Size 5 inch (125 mm) Drive Brook Crompton Electric Motor - Dimensions
Length 1,080 mm Width 800 mm Height 800 mm Please Note: The dimensions are approximate and may be estimated.
- Downloadable Documents
