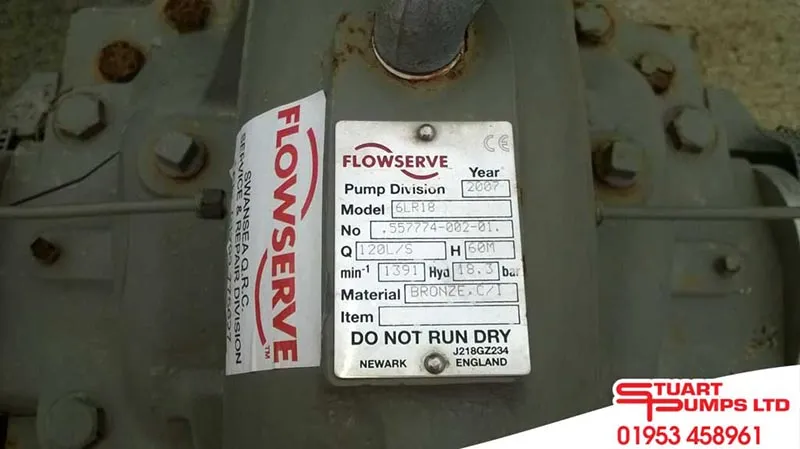

Used Flowserve 6LR18 Split Case Pump
Used Flowserve 6LR18 split case pump with 10” flanged suction and 6” flanged delivery branches.

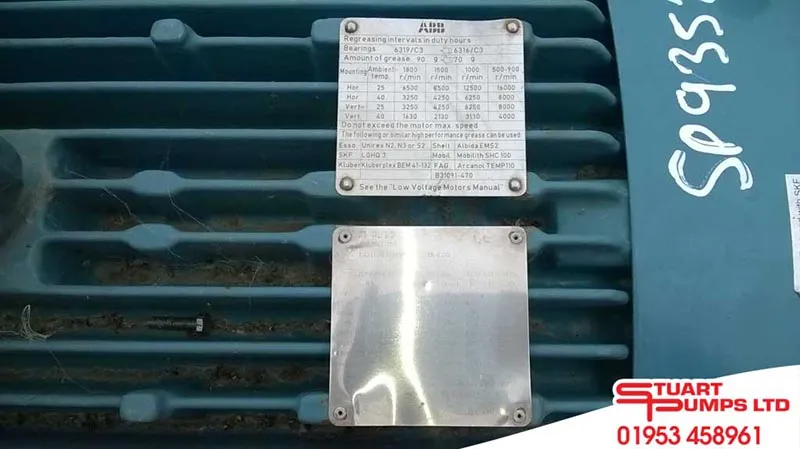

Long coupled to a 110kw, 50/60hz, TEFC 415v, 4 pole, electric motor mounted on a steel base-frame complete with coupling guard.
Ideal for Agriculture, Water Supply and Treatment (oil and gas), Food, Cooling Water, De-watering and Water Supply (mining), Ground Water Development and Irrigation, Water Supply and Distribution (water), Flood Control in flooded suction applications.
Split case design with lifting lugs simplifies maintenance by allowing access to the rotating element without disturbing piping or driver. Low NPSH enclosed impellers provide optimal high-efficiency performance over a wide flow range.
Radial and thrust bearings are available with oil or grease lubrication. Designs include single row, deep groove ball bearings or duplex thrust ball bearings.
- Technical Data
Condition Used (Fair Condition) Manufacturer Flowserve Model / Part 6LR18 Max Flow 432.00 m³/hr Suction Size 10 inch (250 mm) Discharge Size 6 inch (150 mm) Drive Electric Motor - Downloadable Documents
