Used SPP KP12X LPCB Approved Fire Pump Set
Used SPP KP12X LPCB Approved Fire Pump Set

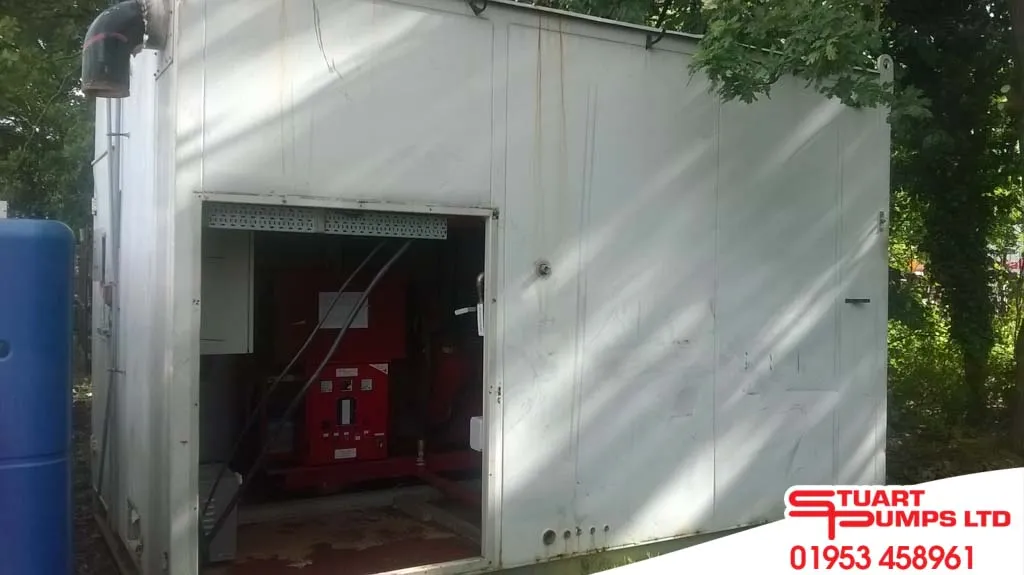

Used SPP KP12X LPCB approved end suction diesel and electric fire pump set. Installed within a stand-alone container requiring a 415v incoming supply to power internal operating systems including lighting.
Installed within the container is;

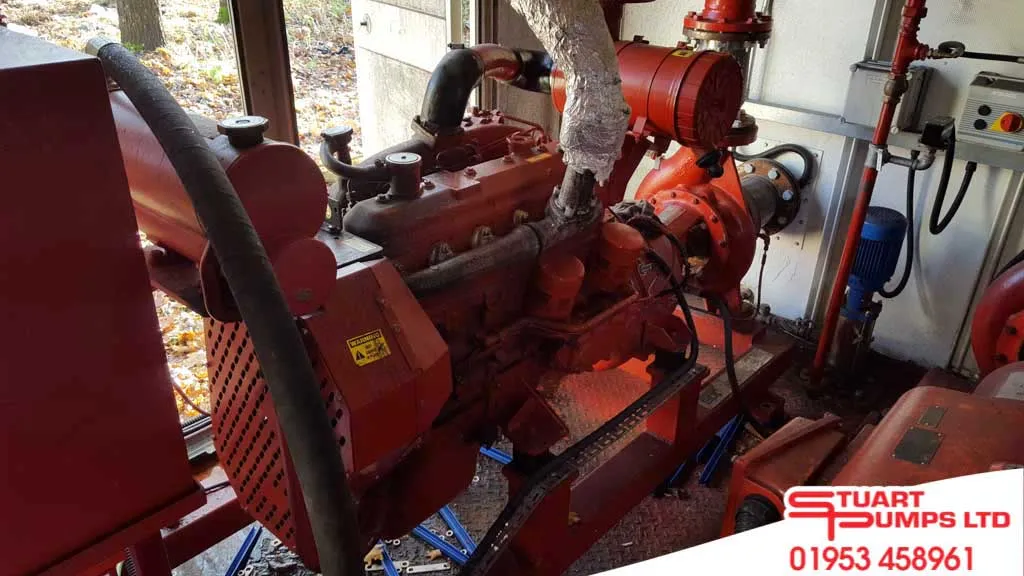

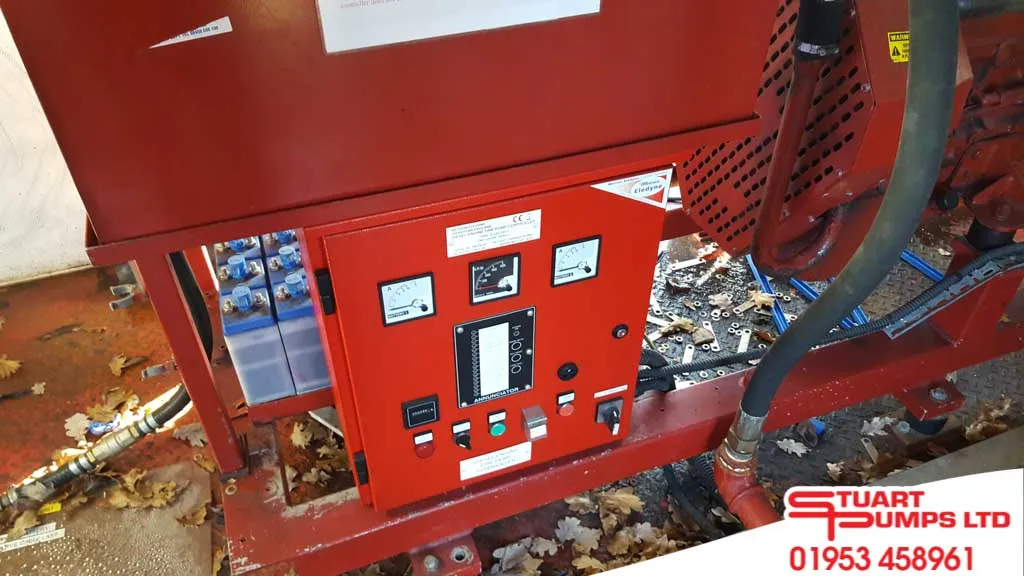

- 1 No KP12X end suction fire pump long coupled to a approved and listed modified heat exchanged, water cooled diesel engine model CD-110 developing 75kw at 2960rpm. Mounted on a skid frame with a approved control start panel model E-LPC2011 made by Metron Eledyne, Ni-cad batteries, battery charger and single skin fuel tank.

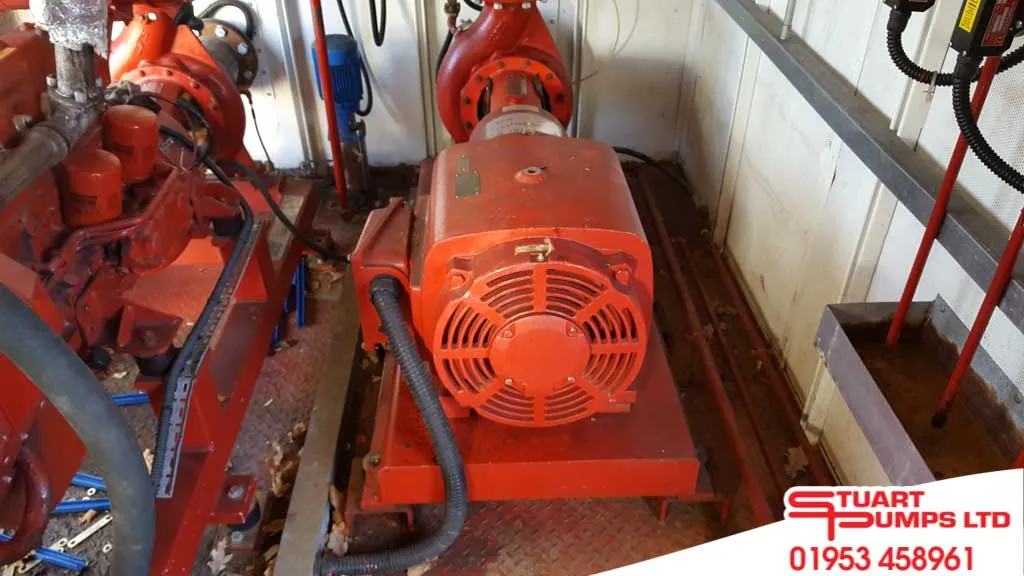

- 1 No KP12X end suction fire pump long coupled to a 75kw, 415v TEFC electric motor. The set has a twin 6” flanged suction and two 6” discharge branches each end one for main discharge the other for test-line / return.
All associated pipework, valves, pressure switches, and operating gauges. The set is fully checked and tested prior to sale at our head office and is ideal to be used for stand-alone fire suppression system where you may have limited space available.
- Technical Data

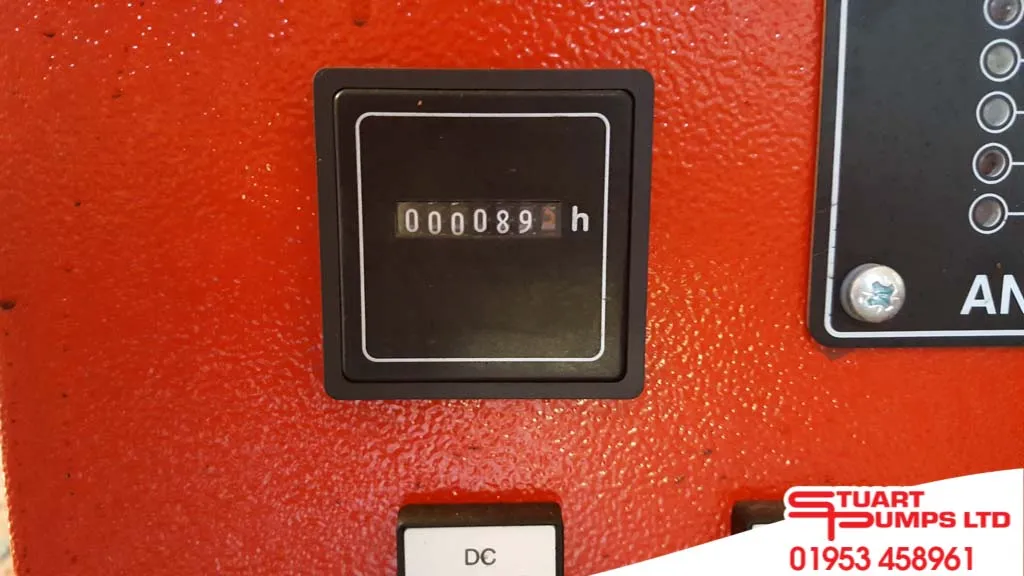

Condition Used (Fair Condition) Manufacturer SPP Model / Part KP12X Year of Manufacture 2001 Max Flow 3750.00 l/min Max Head 6.50 bar Suction Size 6 inch (150 mm) Discharge Size 6 inch (150 mm) Drive Iveco CD-110 Diesel Engine Hours 89 hrs - Dimensions
Length 5,000 mm Width 3,200 mm Height 2,800 mm Please Note: The dimensions are approximate and may be estimated.
