- Price: £13,495.00 Excl. VAT
- Current Stock: Contact us for Availability.
- Stock Number: SPA100M

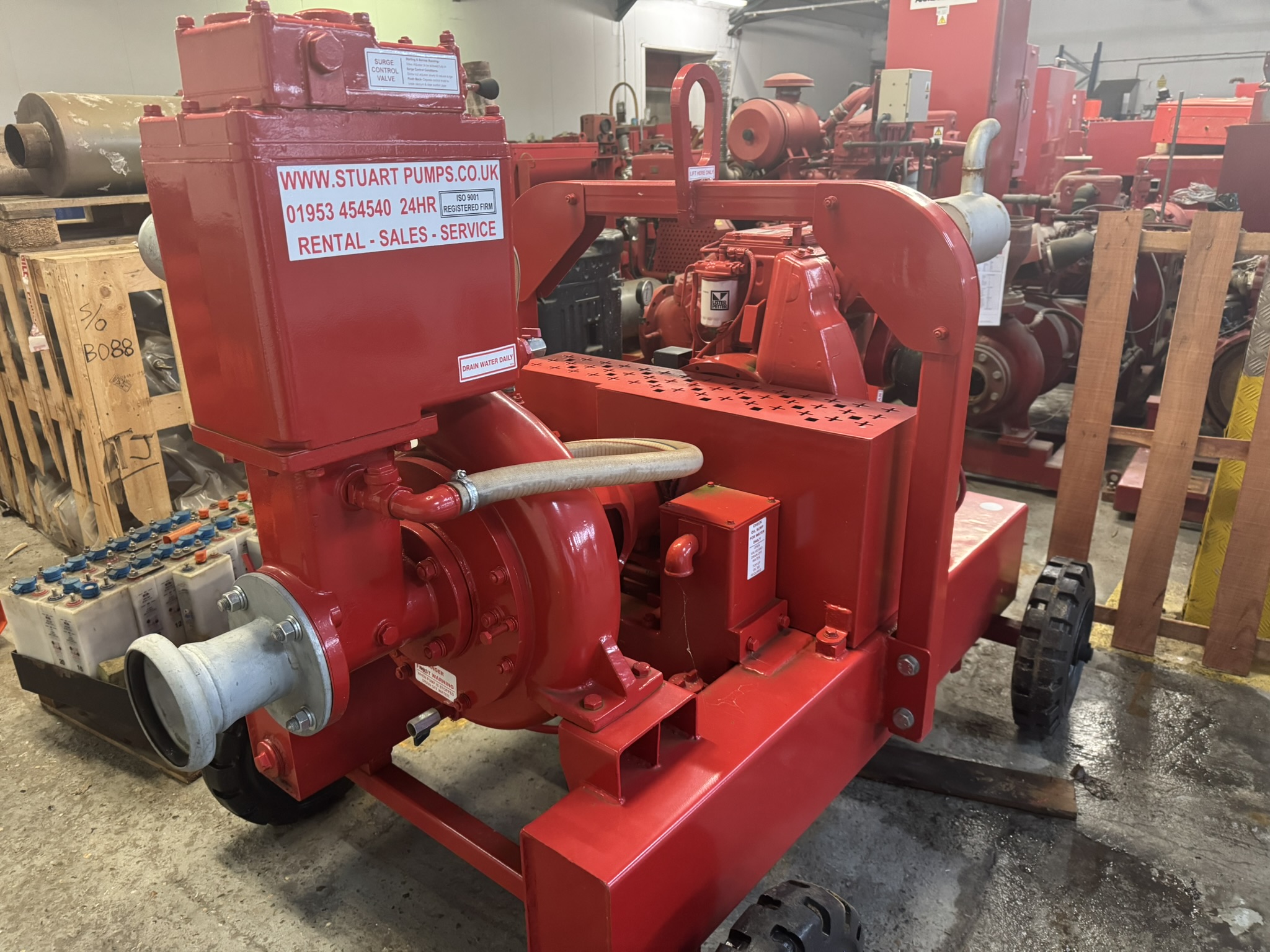

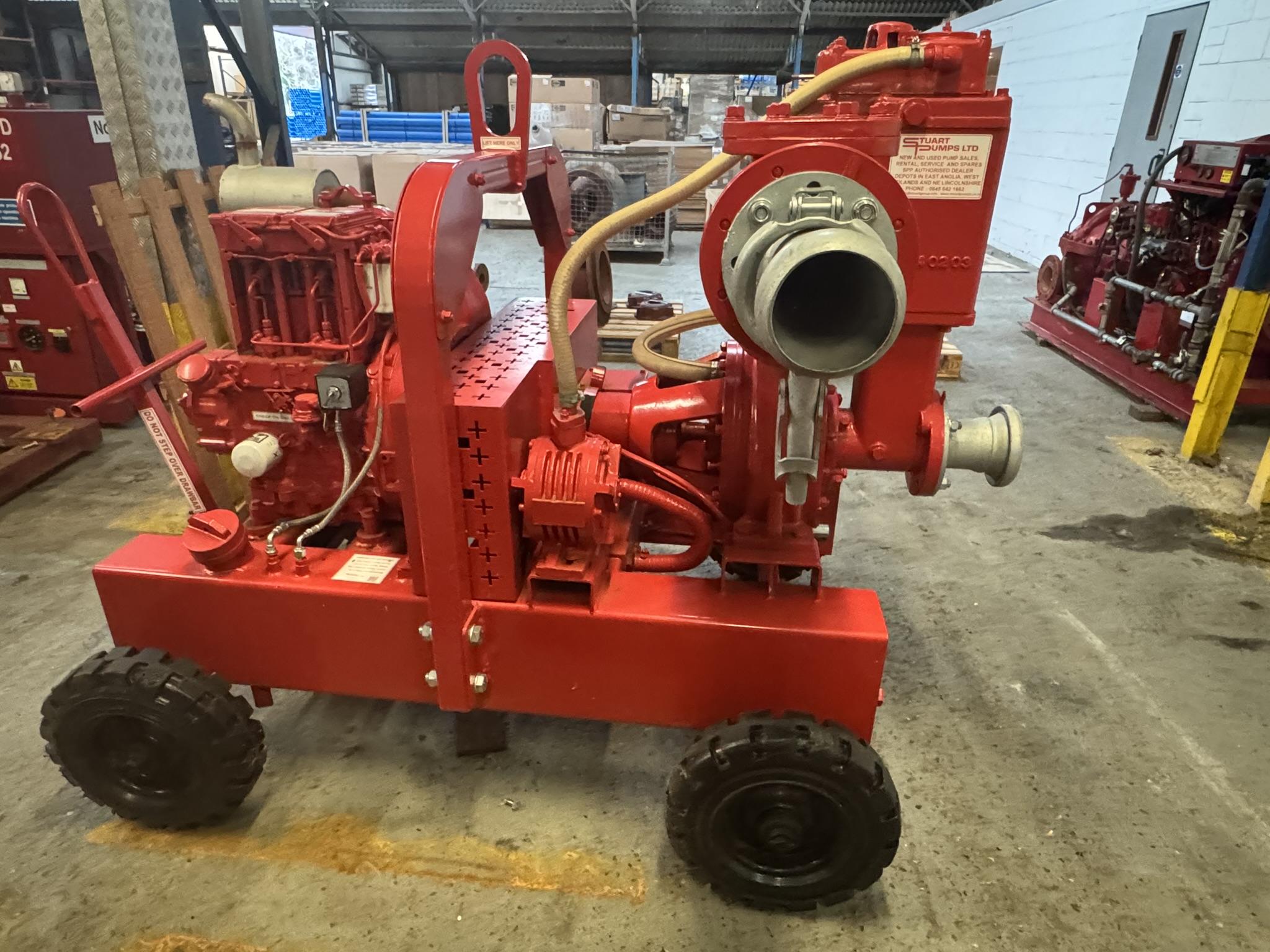

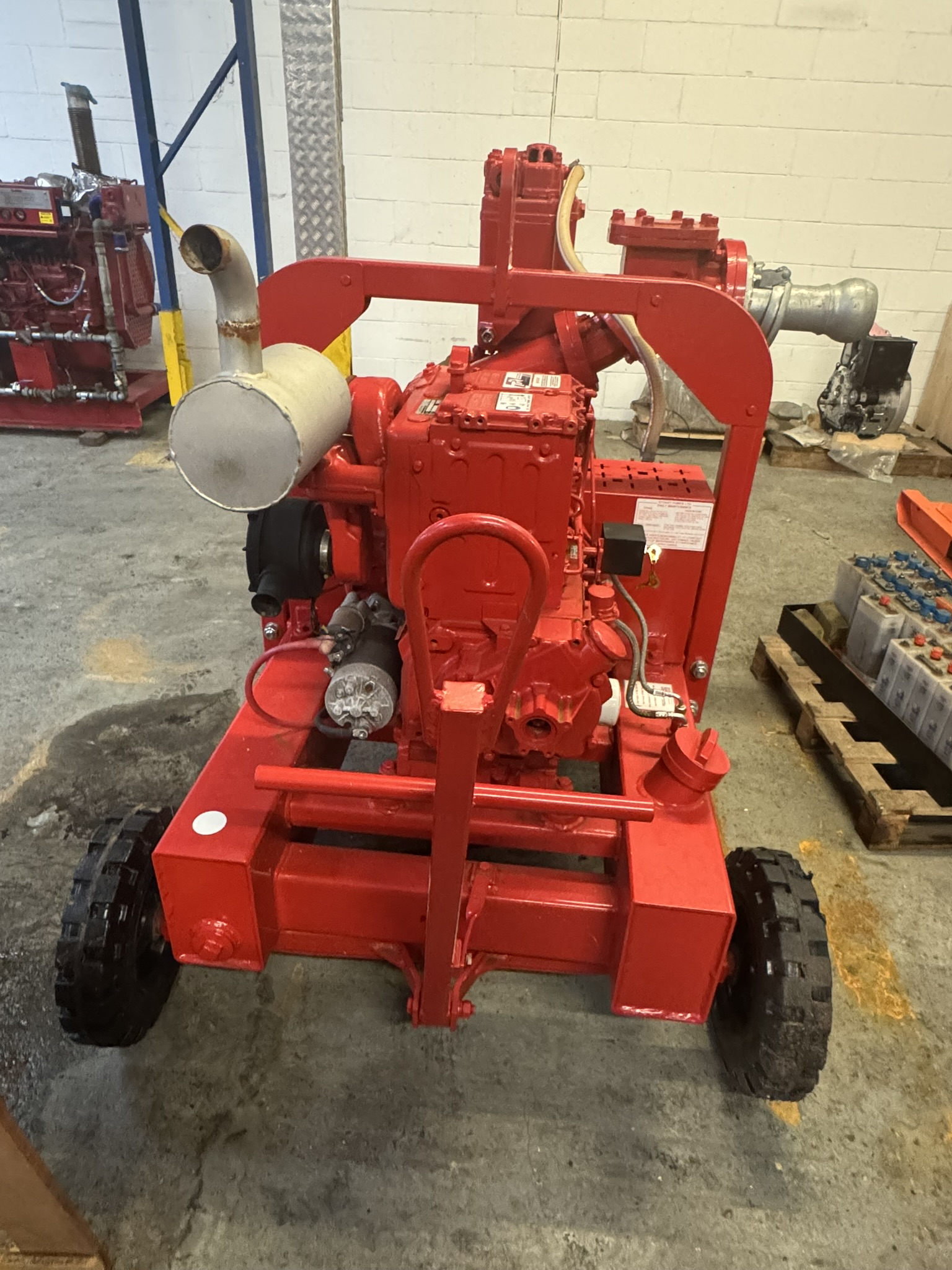

Stuart Pumps SPA100M 4" high performance diesel driven pump
Stuart Pumps SPA100M pump is a high performance diesel driven pump unit designed to pump liquids containing ground water and sump pumping. Fitted with Bauer inlet and outlet couplings and mounted on a 4-wheel site tow trailer.
The pump is fitted with a 25cfm vacuum automatic self-priming system and packed gland shaft seal.
Long coupled to a Lister TR2 variable speed electric start diesel engine developing between 9-17kw. Mounted on 4-wheel site tow trailer.
Ideal of use in the following applications;
Civil engineering projects, Sump pumping Quarry dewatering, Recycling applications, Wash plants, River / cannel over pumping and WellPoint dewatering.
Factory duties, trade effluent, pumping peas, carrot washing, Effluent pumping, screened and unscreened Reservoir filling Dry dock / harbour maintance Boost pumping.
- Technical Data
Condition New Manufacturer Stuart Pumps Model / Part SPA100M Max Flow 153.00 m³/hr Max Head 31.00 m Suction Size 4 inch (100 mm) Discharge Size 4 inch (100 mm) Solids Handling 44 mm Drive Lister-Petter TR2 Diesel Engine - Dimensions
Length 1,700 mm Width 1,200 mm Height 1,500 mm Weight (Dry) 860.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
