Used Weir Linatex IIIr pump
1 Images
- Price: £3,750.00 Excl. VAT
- Current Stock: 2 Unit/s in Stock
- Stock Number: SP9526, SP9527
Used Weir Linatex IIIr pump

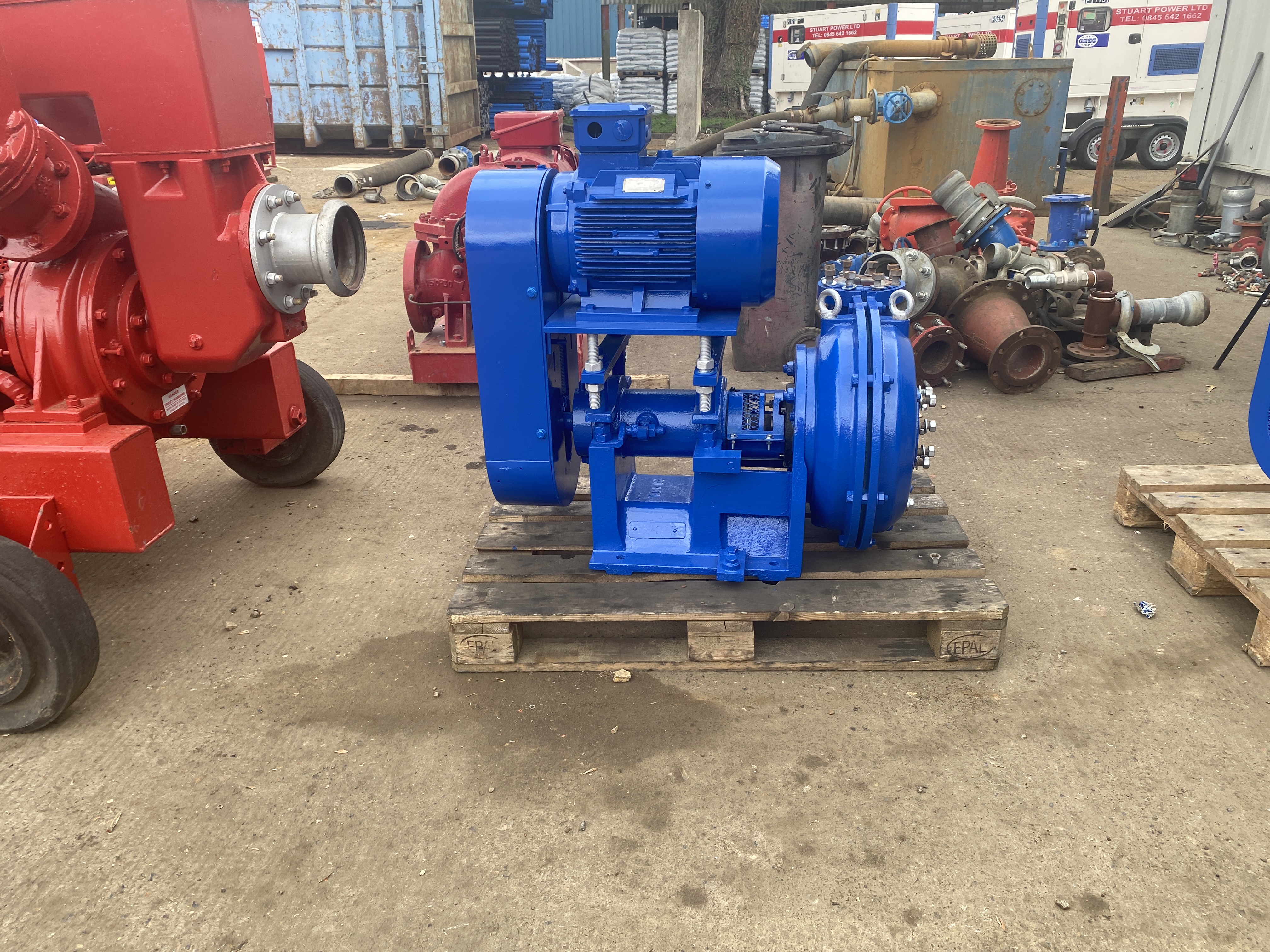

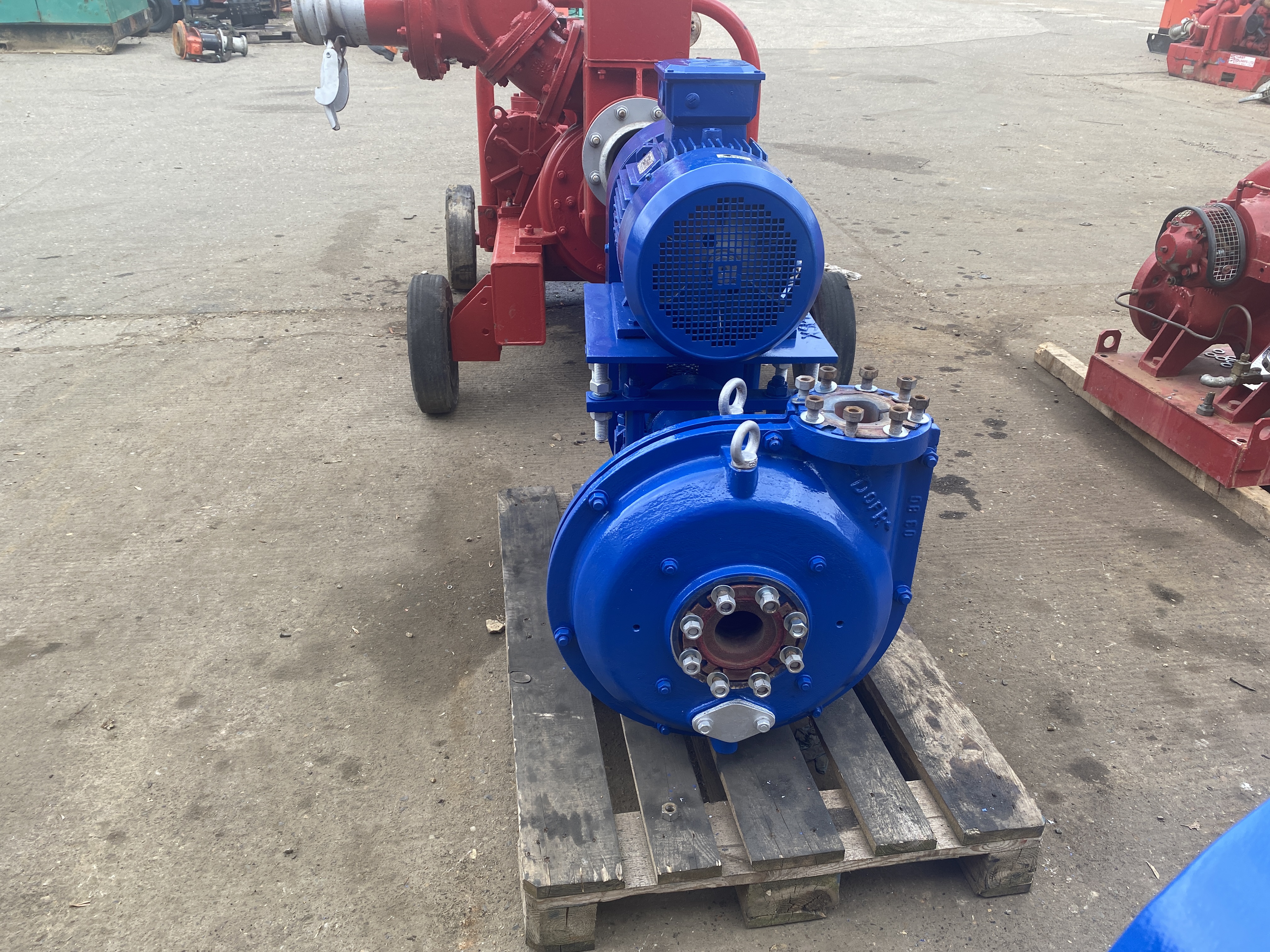

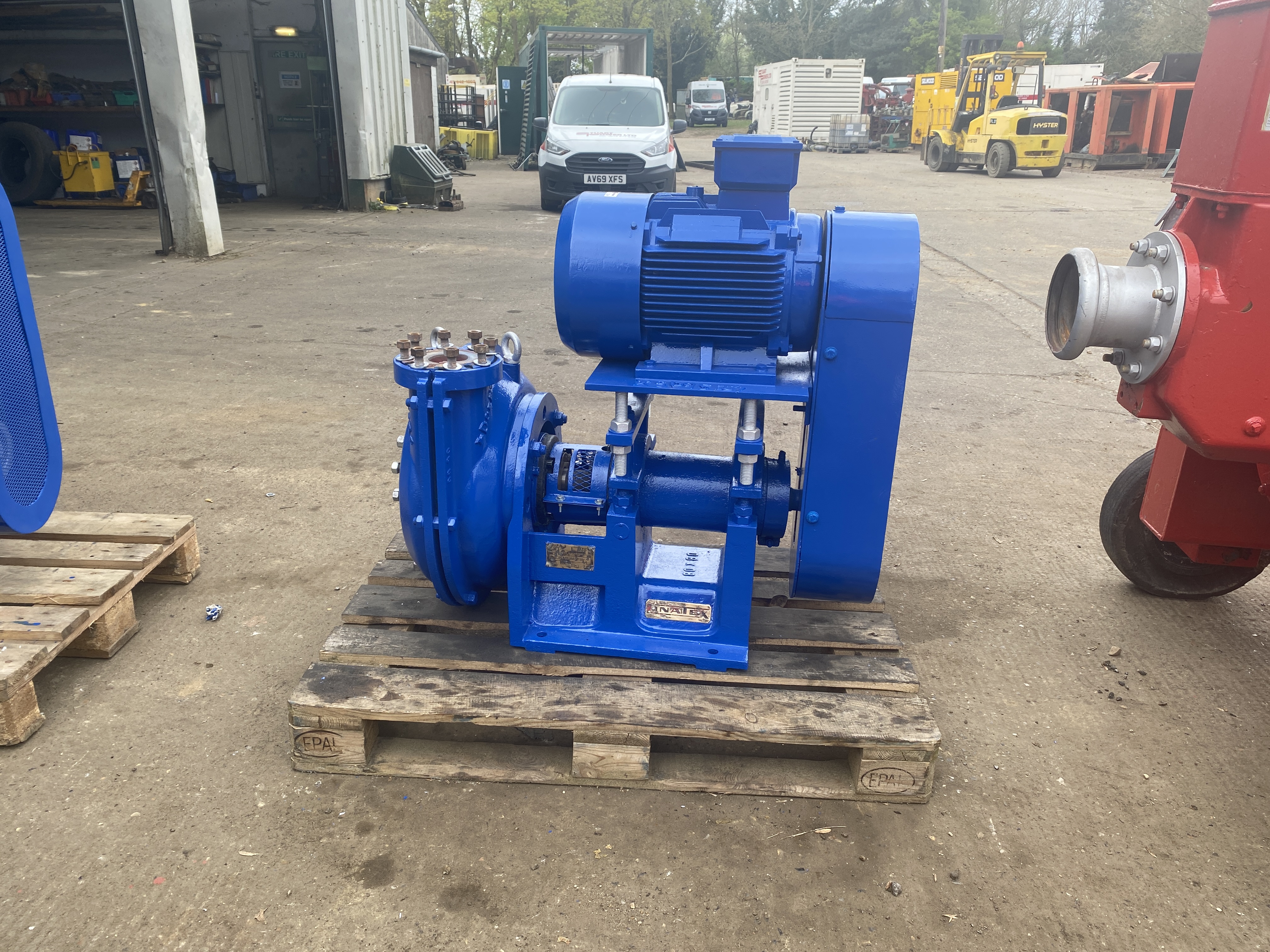

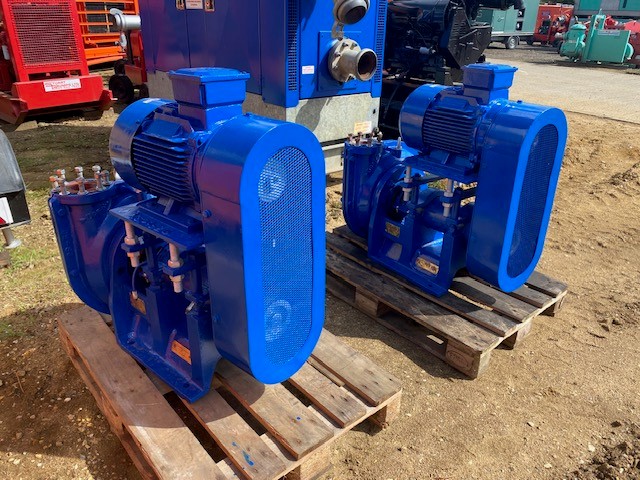

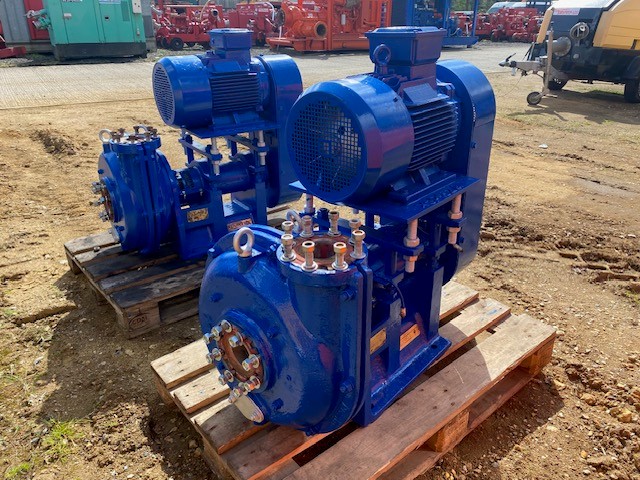

Used Weir Linatex IIIr pump with 4” flanged suction and delivery connections.

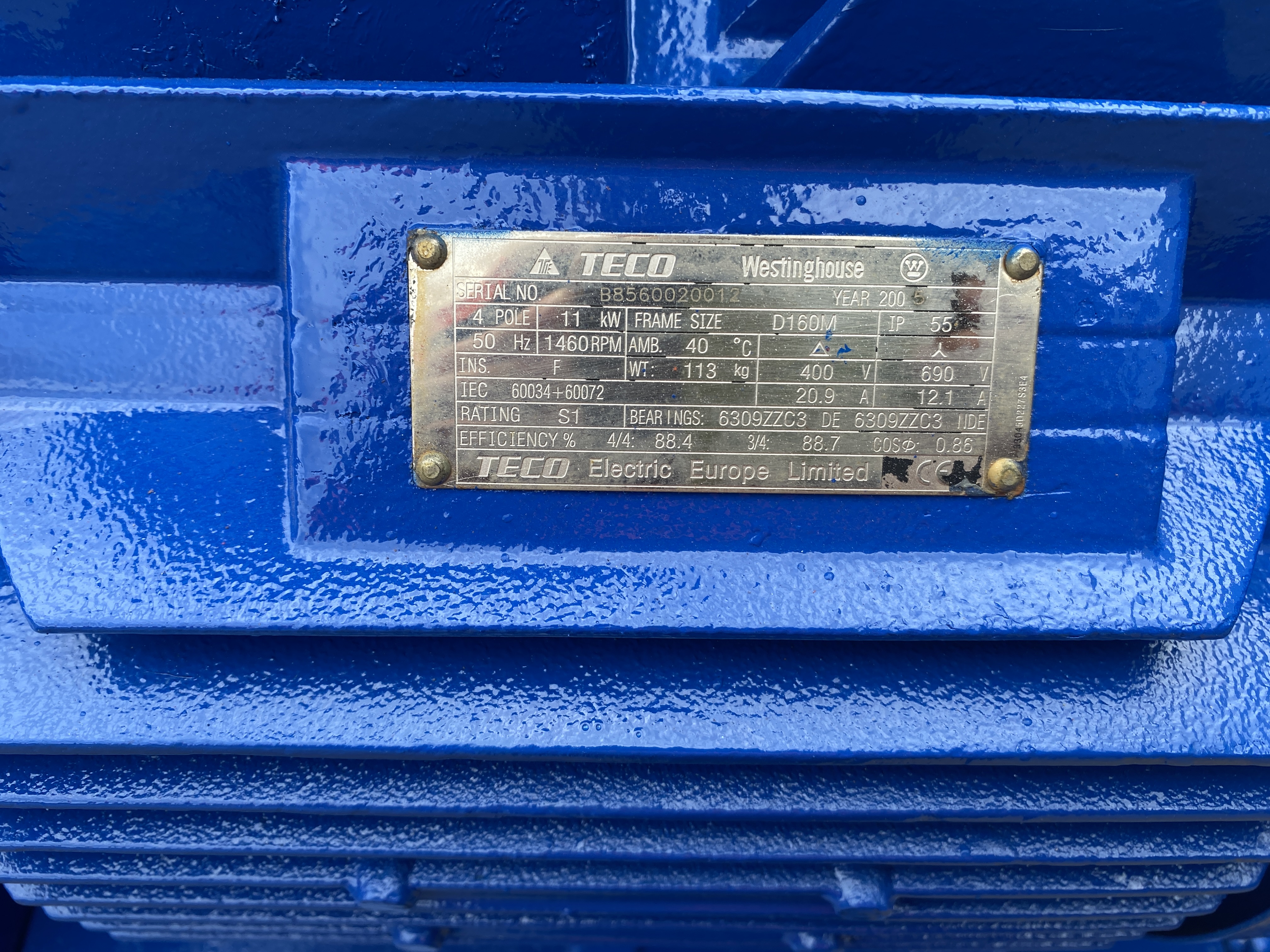

Fitted with an overslung 11kw, 400v, 1460rpm electric motor with pulleys sized to run the pump at 1000rpm.
Larger electric motors can be offered at additional cost to offer more flow and delivery heads.
The pump has a replaceable moulded Linatex impeller and thick rubber liners for the best abrasion resistance.
Ideal for pumping abrasive materials in quarry or dredging applications.
- Technical Data
Condition Used (Fair Condition) Manufacturer Weir Model / Part Linatex IIIr Max Flow 136.80 m³/hr Max Head 20.00 m Suction Size 4 inch (100 mm) Discharge Size 4 inch (100 mm) Solids Handling 40 mm Drive TECO 11 kW Electric Motor Kilowatts 11.00 kW - Dimensions
Length 970 mm Width 980 mm Height 600 mm Weight (Dry) 420.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
